Transmission Control Module -6 Connector

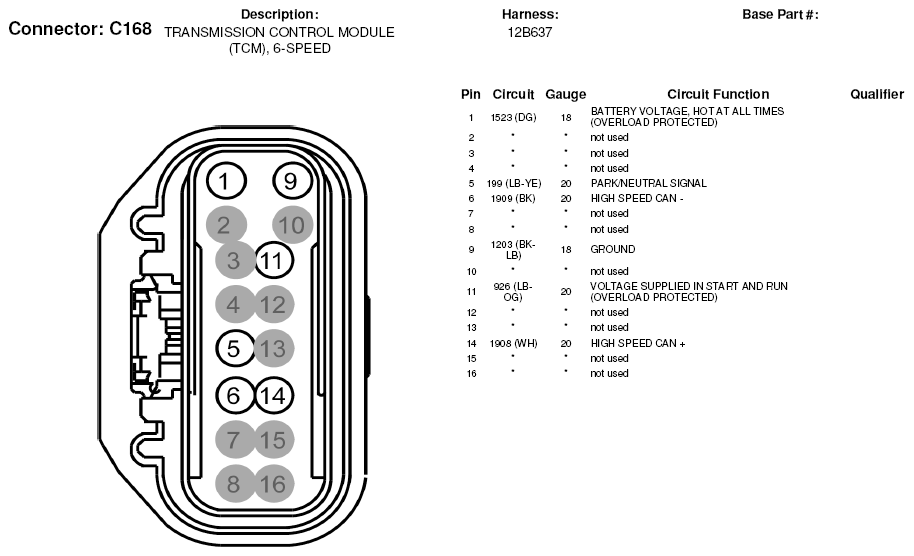

Fig 1: Transmission Control Module -6 Connector End View (C168)
G05179409Courtesy of FORD MOTOR CO.
