Transmission Control Module Connector
Transmission Control Module Connector

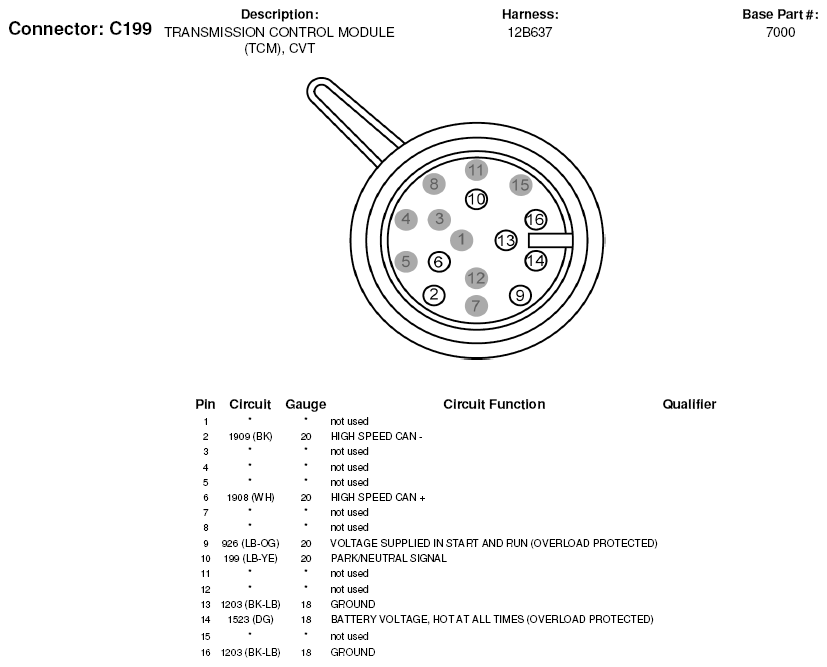

Fig 1: Transmission Control Module Connector End View (C199)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
