Generator Connectors

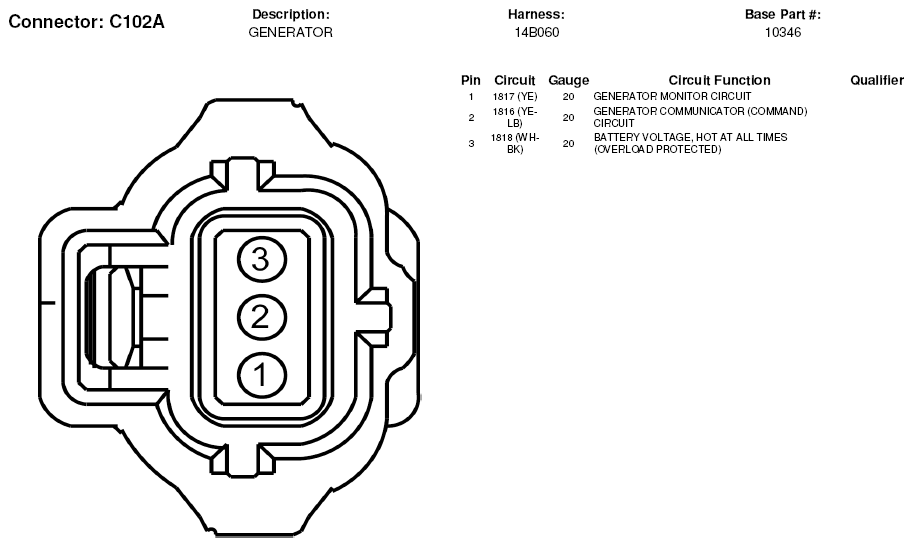

Fig 1: Generator Connector End View (C102A)
G05179377Courtesy of FORD MOTOR CO.

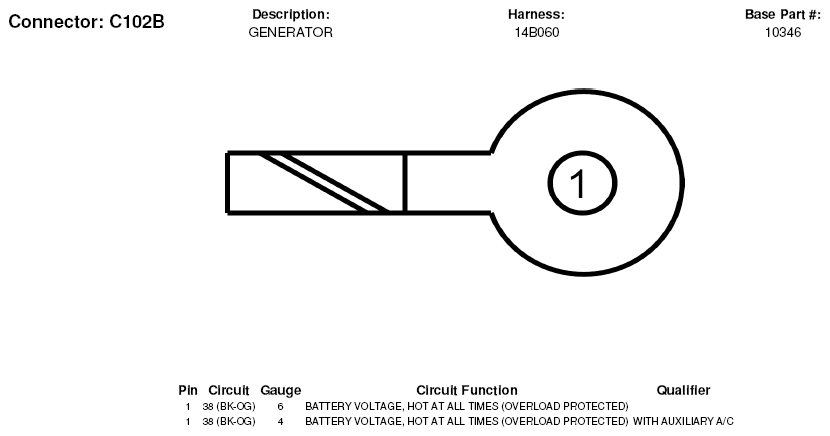

Fig 2: Generator Connector End View (C102B)
G05179378Courtesy of FORD MOTOR CO.

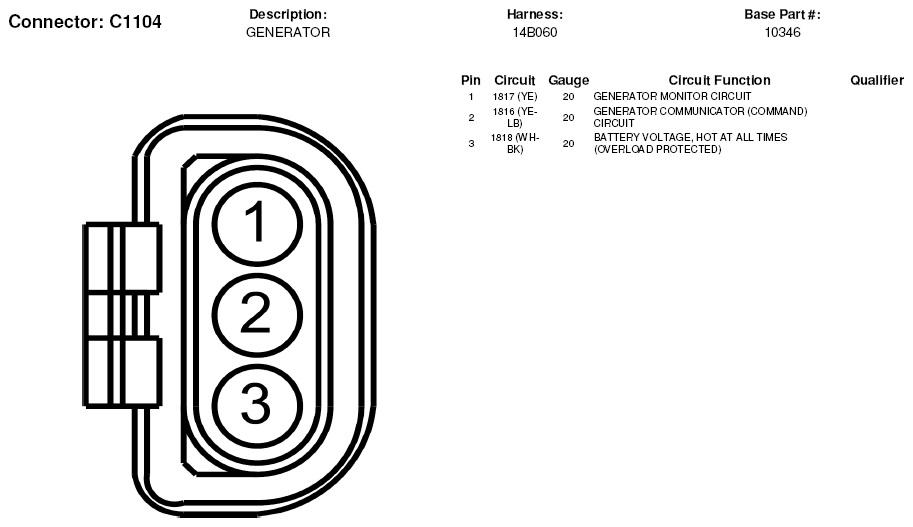

Fig 3: Generator Connector End View (C1104)
G05179576Courtesy of FORD MOTOR CO.
