Data Link Connector
Data Link Connector

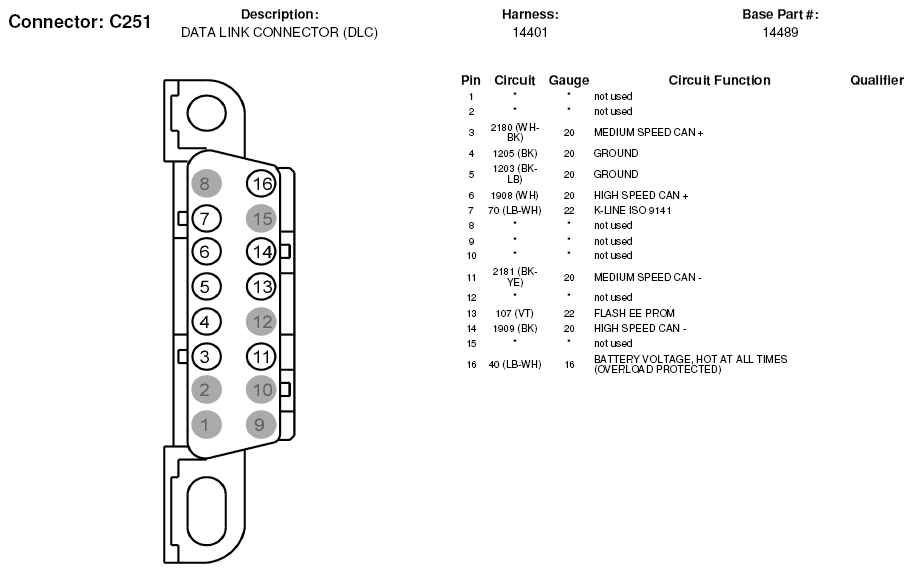

Fig 1: Data Link Connector Connector End View (C251)
Courtesy of FORD MOTOR CO.
