Keypad Switch Assembly Connector

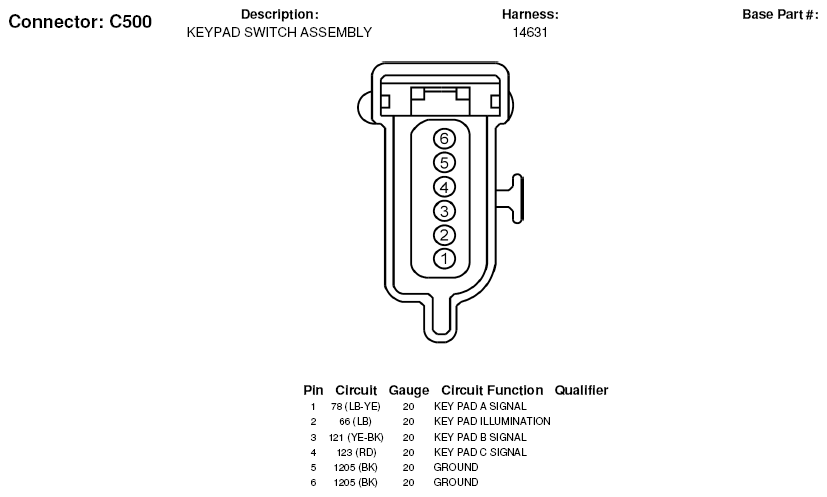

Fig 1: Keypad Switch Assembly Connector End View (C500)
G05179505Courtesy of FORD MOTOR CO.
