Passive Antitheft Transceiver Connector
Passive Antitheft Transceiver Connector

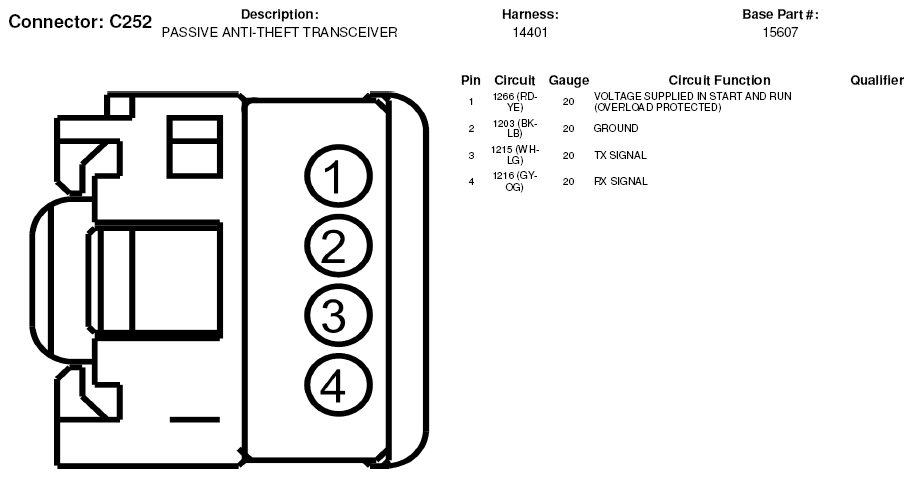

Fig 1: Passive Antitheft Transceiver Connector End View (C252)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
