Overhead Console Connectors

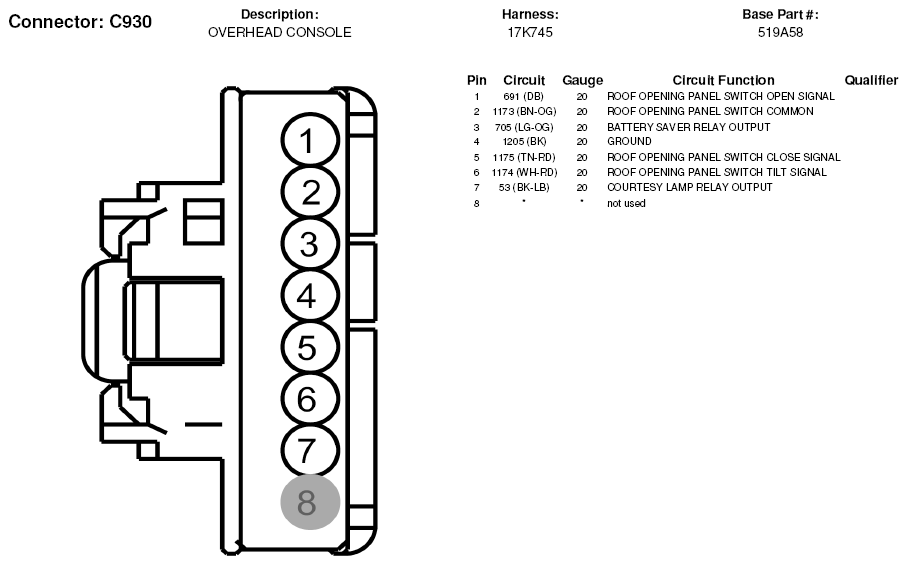

Fig 1: Overhead Console Connector End View (C930)
G05179555Courtesy of FORD MOTOR CO.
