OEM Connector End Views
›
Connector Views
›
Lamp Assembly Connectors
Lamp Assembly Connectors
Fig 1: Lamp Assembly Connector End View (C414A)
Courtesy of FORD MOTOR CO.
Fig 2: Lamp Assembly Connector End View (C414B)
Courtesy of FORD MOTOR CO.
Fig 3: Lamp Assembly Connector End View (C414C)
Courtesy of FORD MOTOR CO.
Fig 4: Lamp Assembly Connector End View (C414D)
Courtesy of FORD MOTOR CO.

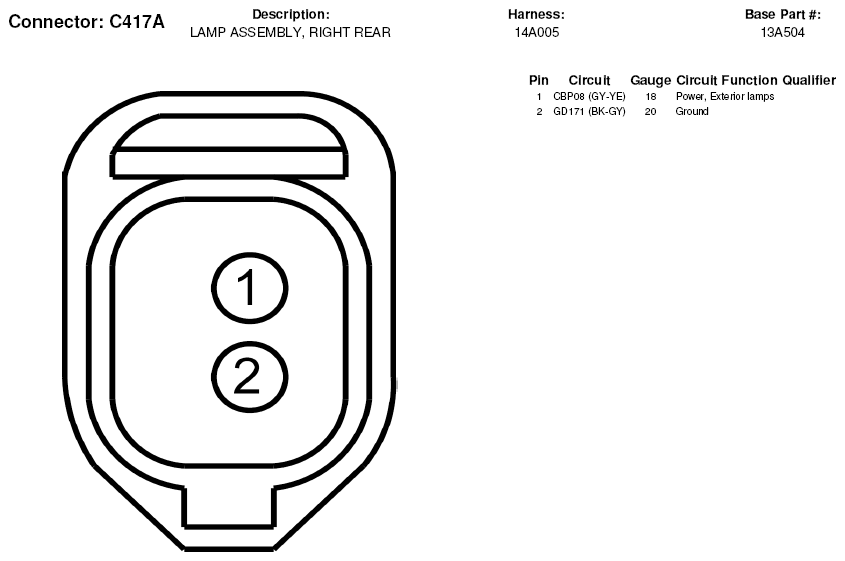

Fig 5: Lamp Assembly Connector End View (C417A)
Courtesy of FORD MOTOR CO.

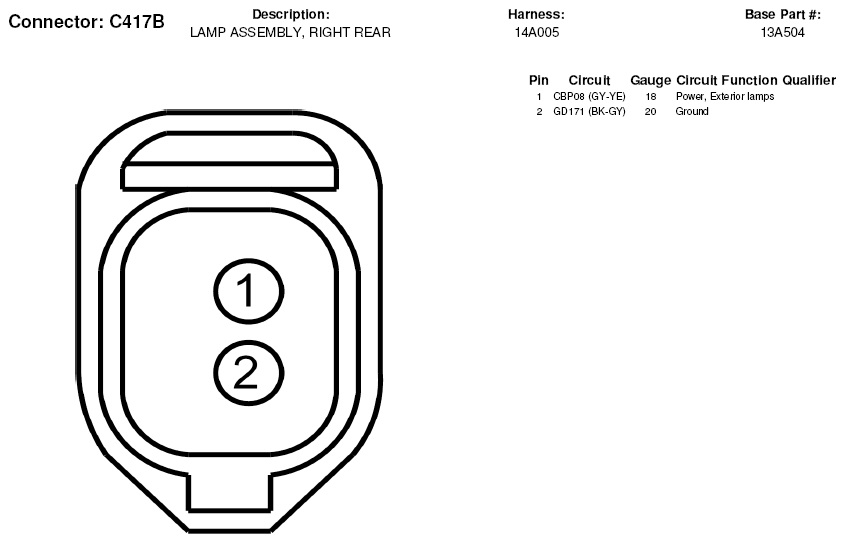

Fig 6: Lamp Assembly Connector End View (C417B)
Courtesy of FORD MOTOR CO.
Fig 7: Lamp Assembly Connector End View (C417C)
Courtesy of FORD MOTOR CO.
Fig 8: Lamp Assembly Connector End View (C417D)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
