Manual Climate Control Module Connector

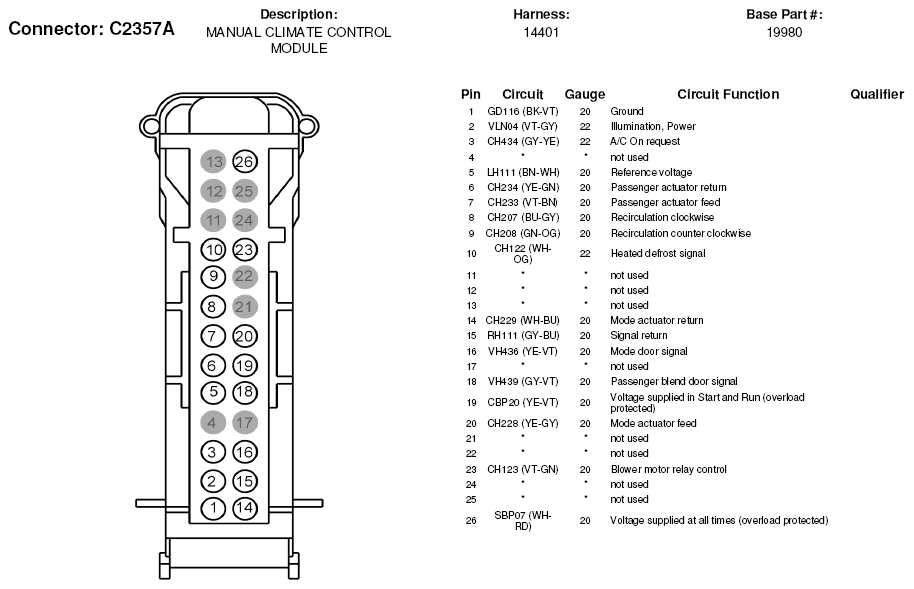

Fig 1: Manual Climate Control Module Connector End View (C2357A)
G05180842Courtesy of FORD MOTOR CO.

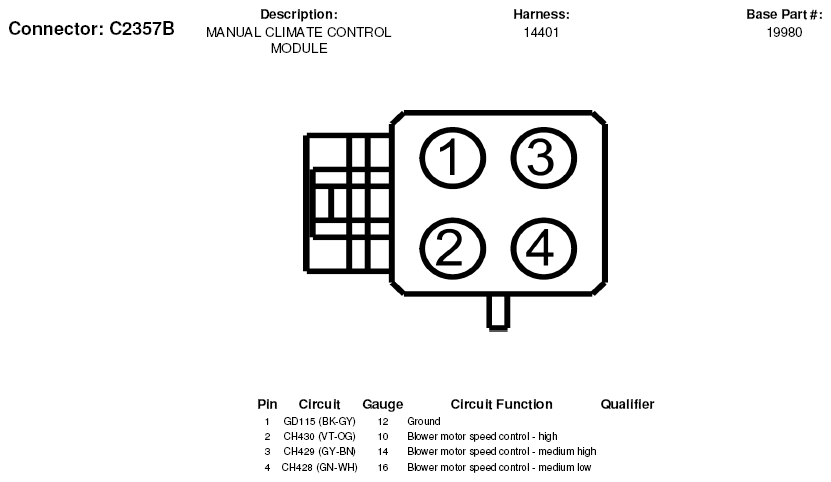

Fig 2: Manual Climate Control Module Connector End View (C2357B)
G05180843Courtesy of FORD MOTOR CO.
