Speaker Assembly Connector
Speaker Assembly Connector

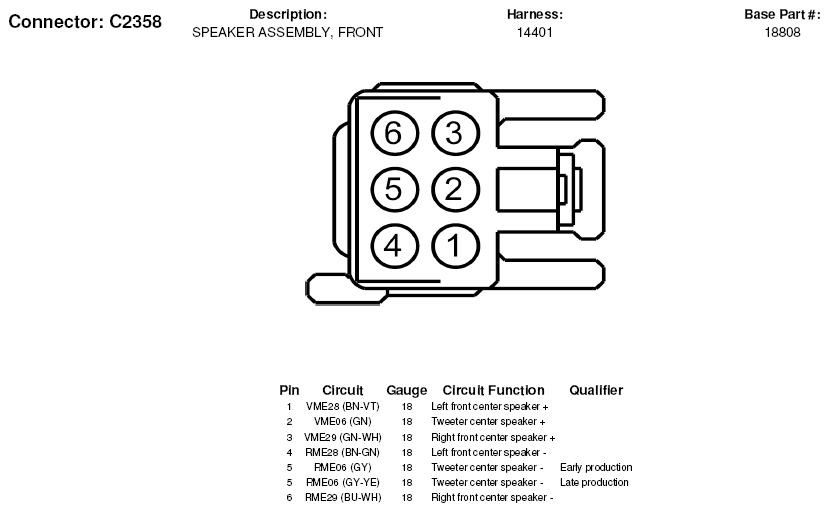

Fig 1: Speaker Assembly Connector End View (C2358)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
