Instrument Panel - Exploded View

NOTE: Fusion shown, Milan similar.

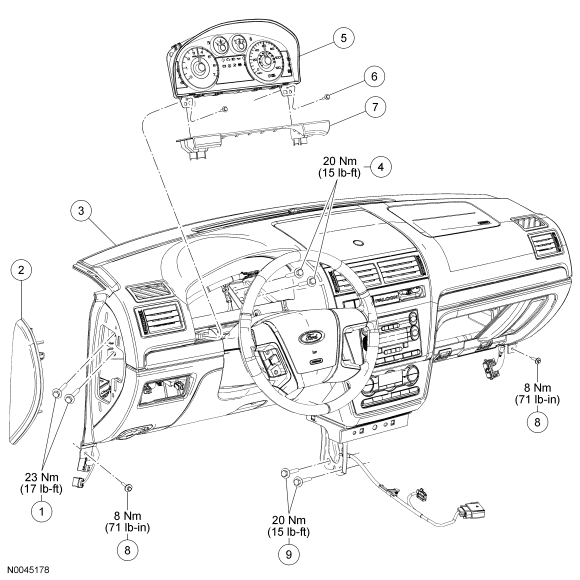

Fig 1: Exploded View Of Instrument Panel With Torque Specifications - Fusion/Milan

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701834-S424	Instrument panel cowl side upper bolts (3 required)
2	04480B	LH instrument panel end trim panel
3	-	Instrument panel assembly
4	W701834-S424	Instrument panel cluster opening bolts (2 required)
5	10849	Instrument cluster
6	W705314	Instrument cluster screw (2 required)
7	54044D70	Instrument cluster finish panel
8	W708268-S439	Instrument panel lower bolts (2 required)
9	N811479-S439	Instrument panel center brace bolts (2 required)

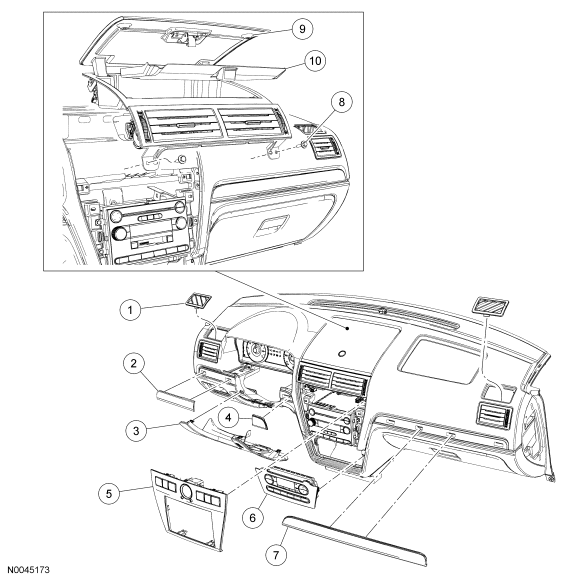

Fig 2: Exploded View Of Instrument Panel - Fusion/Milan Instrument Panel Finish Panels

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	54046A77	Demister bezel (2 required)
2	5404338	LH applique
3	5404459	Steering column cover
4	54044A91	Center LH applique
5	5404302	Upper center instrument panel finish panel
6	5404608	Lower center instrument panel finish panel
7	54044A90	RH applique
8	-	Upper storage bin screw (2 required)
9	5413594	Upper storage bin
10	-	Upper storage bin mat

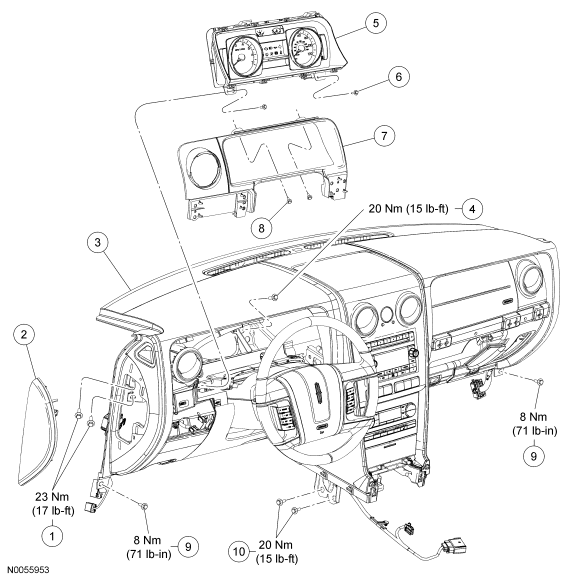

Fig 3: Exploded View Of Instrument Panel With Torque Specifications - MKZ

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701834-S424	Instrument panel cowl side upper bolts (3 required)
2	04480B	LH instrument panel end trim panel
3	-	Instrument panel assembly
4	W701834-S424	Instrument panel cluster opening bolt (2 required)
5	10849	Instrument cluster
6	W705314	Instrument cluster screw (2 required)
7	54044D70	Instrument cluster finish panel
8	-	Instrument cluster finish panel screw (2 required)
9	W708268-S439	Instrument panel lower bolts (2 required)
10	N811479-S439	Instrument panel center brace bolts (2 required)

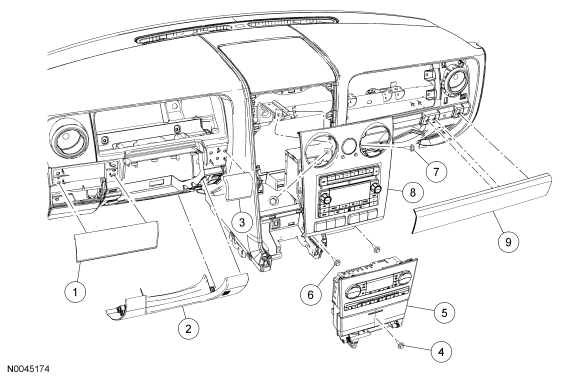

Fig 4: Exploded View Of Instrument Panel - MKZ Instrument Panel Finish Panels

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	54044A91	LH applique
2	5404459	Steering column cover
3	5404388	Center LH applique
4	-	Lower center instrument panel finish panel screw
5	5404608	Lower center instrument panel finish panel
6	W505422	Upper center instrument panel finish panel lower screw (2 required)
7	W505422	Upper center instrument panel finish panel upper screw (2 required)
8	5404338	Upper center instrument panel finish panel
9	54044A90	RH applique

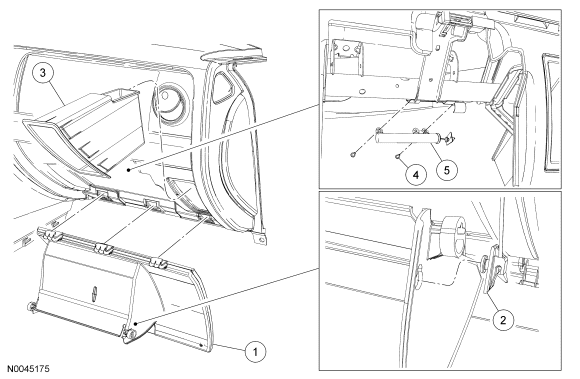

Fig 5: Exploded View Of Glove Compartment

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	54060T10	Glove compartment
2	-	Glove compartment dampener clip (part of 5406102)
3	5406010	Glove compartment mini-bin
4	-	Glove compartment dampener screw (2 required)
5	5406102	Glove compartment dampener
