Steering Wheel Switch Connector

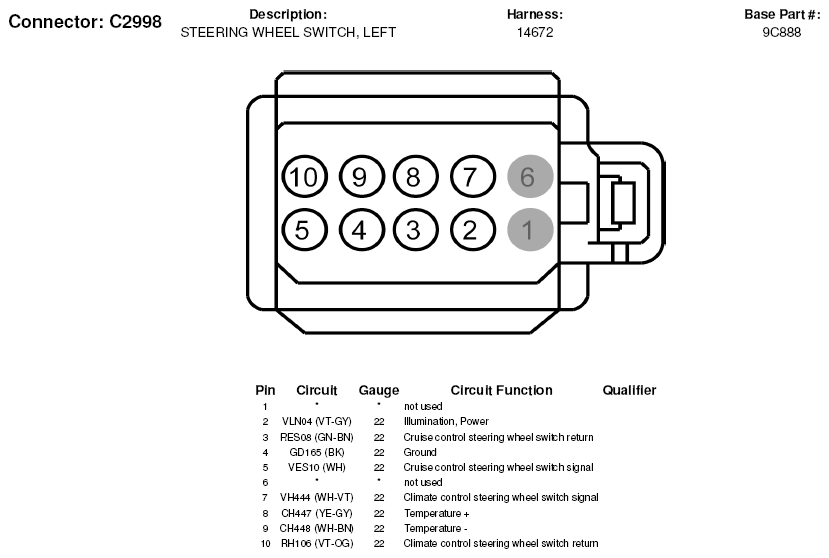

Fig 1: Steering Wheel Switch Connector End View (C2998)
G05180847Courtesy of FORD MOTOR CO.

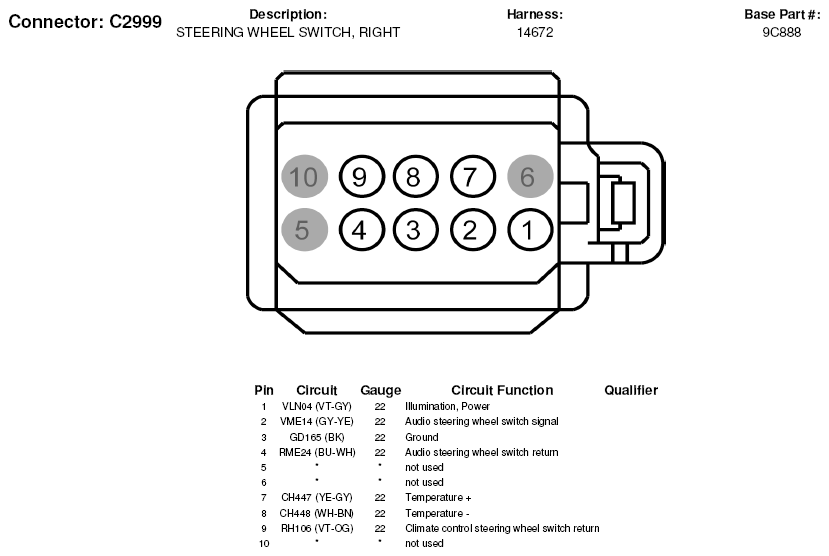

Fig 2: Steering Wheel Switch Connector End View (C2999)
G05180848Courtesy of FORD MOTOR CO.
