Intermediate Shaft Speed Sensor: Notes

Material

Item	Specification
Thread Sealant with PTFE TA-24	WSK-M2G350-A2

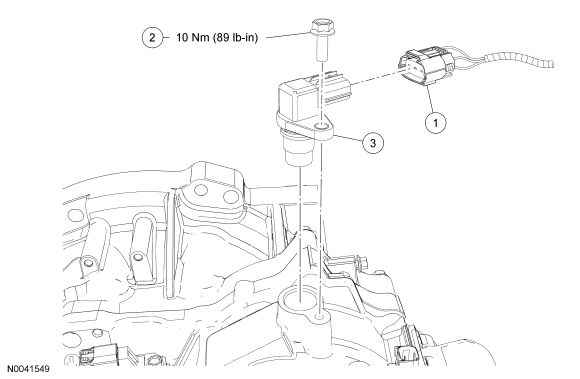

Fig 1: Exploded View Of Intermediate Shaft Speed Sensor With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Intermediate shaft speed sensor electrical connector
2	S997840616	Bolt
3	7H103	Intermediate shaft speed sensor
