Main Control: Notes
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
| Motorcraft Metal Surface Cleaner ZC-21 |
WSE-M5B392-A |
| Ultra Silicone Sealant TA-29 |
- |

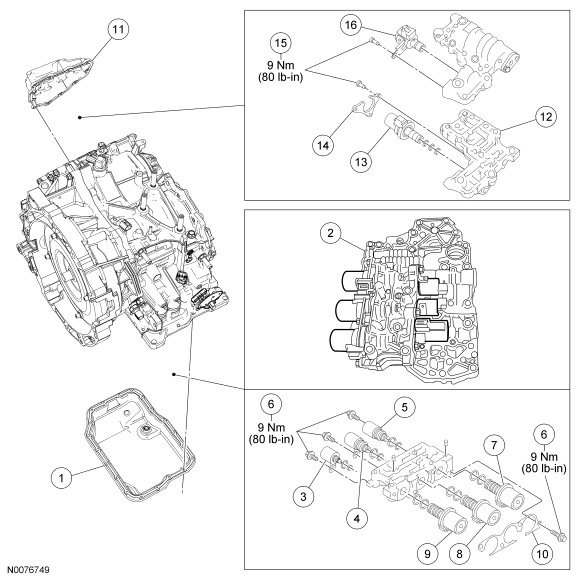

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A194 | Transmission fluid pan |
| 2 | - | Main control valve body |
| 3 | 7G383 | Pressure control solenoid A (PCA) |
| 4 | 7H148 | Shift solenoid D (SSD) |
| 5 | 7H148 | Shift solenoid E (SSE) |
| 6 | - | Solenoid retaining bolts (7 required) |
| 7 | 7H448 | Shift solenoid B (SSB) |
| 8 | 7H448 | Shift solenoid C (SSC) |
| 9 | 7G484 | Shift solenoid A (SSA) |
| 10 | - | Solenoid retaining bracket |
| 11 | 7G004 | Solenoid body cover |
| 12 | - | Solenoid body |
| 13 | 7G383 | Pressure control solenoid B (PCB) |
| 14 | - | Solenoid retaining bracket |
| 15 | - | Solenoid retaining bolts (2 required) |
| 16 | 7H448 | Shift solenoid F (SSF) |
