Transmission Control Module (TCM): Notes

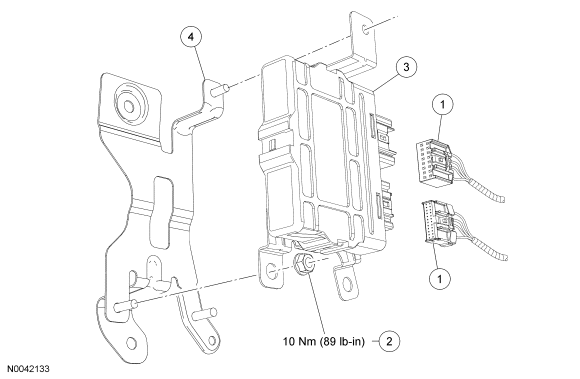

Fig 1: Exploded View Of Transmission Control Module (TCM) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14489	Transmission control module (TCM) electrical connectors
2	3M51	Nut
3	72369	TCM
4	-	TCM mounting bracket
