Seat - Exploded View, Rear

NOTE: Seat backrest with armrest shown, seat backrest without armrest similar.

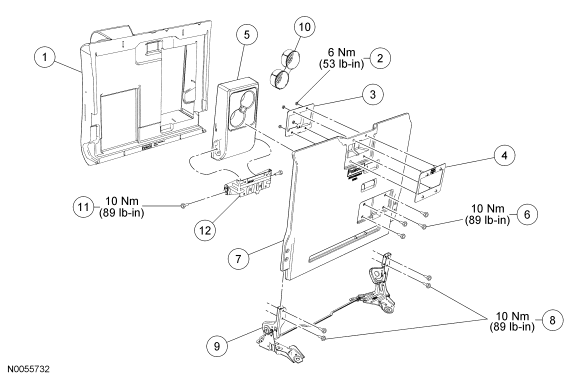

Fig 1: Exploded View Of Rear Seat Backrest, 60 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	66801/66601	Backrest foam pad/trim cover
2	N620480	Striker-to-backrest frame nut (4 required)
3	-	Backrest latch striker (part of 613A39)
4	-	Striker support plate (part of 613A39)
5	67112	Armrest assembly (if equipped)
6	N605892	Armrest-to-backrest bolt (if equipped) (4 required)
7	613A39	Backrest frame
8	N605892	Backrest-to-pivot bolts (4 required)
9	-	Backrest pivot assembly (part of 613A39)
10	67112	Rubber insert, armrest cup holder (if equipped)
11	W712494	Armrest pivot bolt (if equipped) (2 required)
12	67210	Armrest bracket (if equipped)

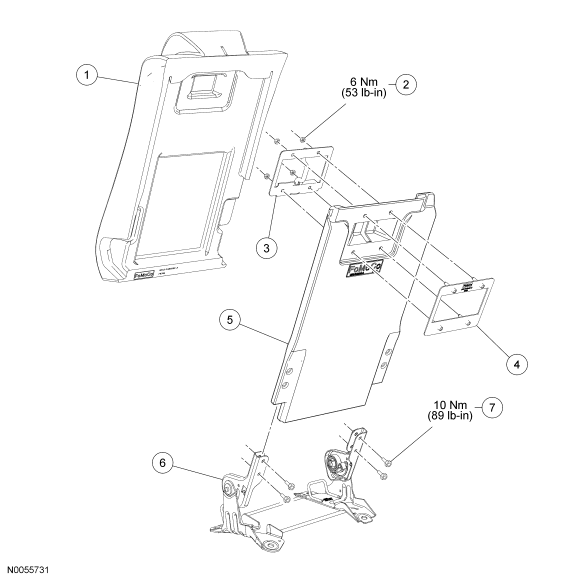

Fig 2: Exploded View Of Rear Seat Backrest, 40 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	66800/66600	Backrest foam pad/trim cover
2	N620480	Striker-to-backrest frame nut (4 required)
3	-	Backrest latch striker (part of 613A38)
4	-	Striker support plate (part of 613A38)
5	613A38	Backrest frame
6	-	Backrest pivot assembly (part of 613A38)
7	N605892	Backrest-to-pivot bolt (4 required)
