Cylinder Head Temperature Sensor Connector

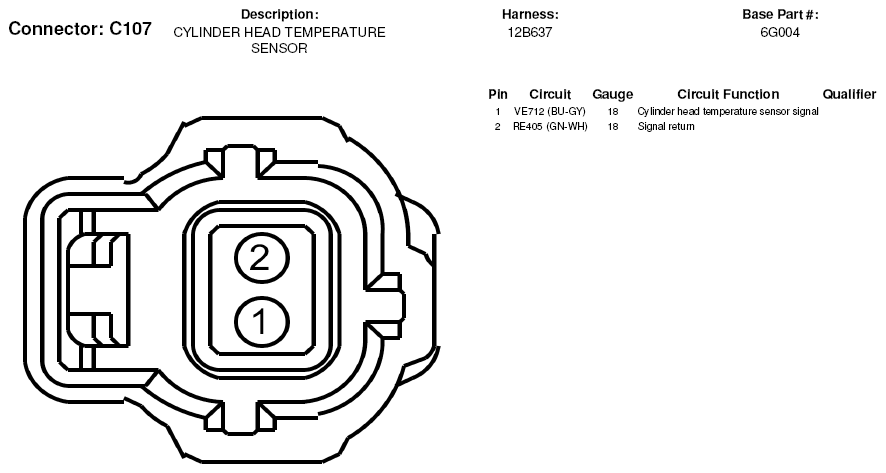

Fig 1: Cylinder Head Temperature Sensor Connector End View (C107)

Courtesy of FORD MOTOR CO.

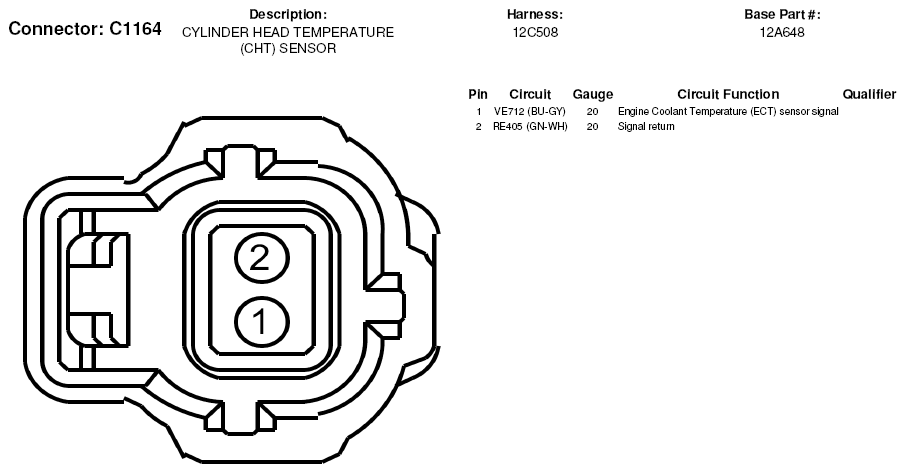

Fig 2: Cylinder Head Temperature Sensor Connector End View (C1164)

Courtesy of FORD MOTOR CO.
