Door Lock Switch Connector

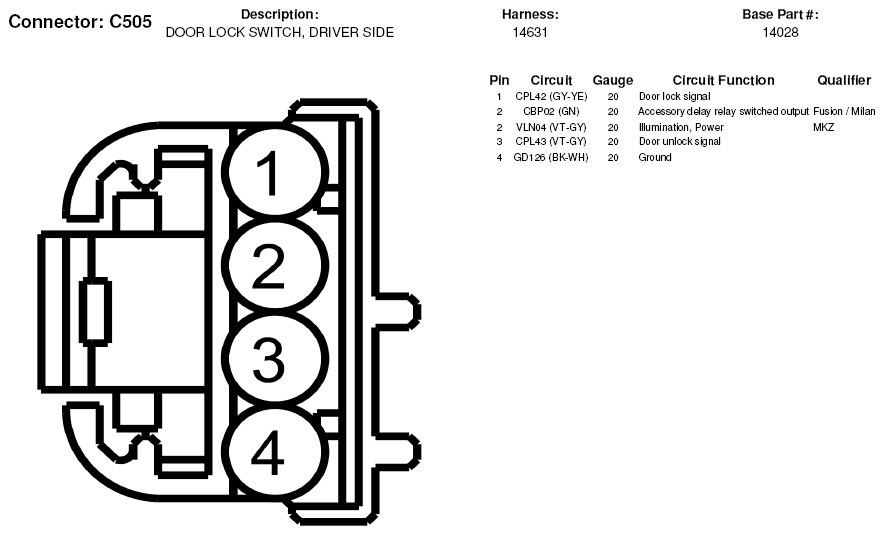

Fig 1: Door Lock Switch Connector End View (C505)
G05180708Courtesy of FORD MOTOR CO.

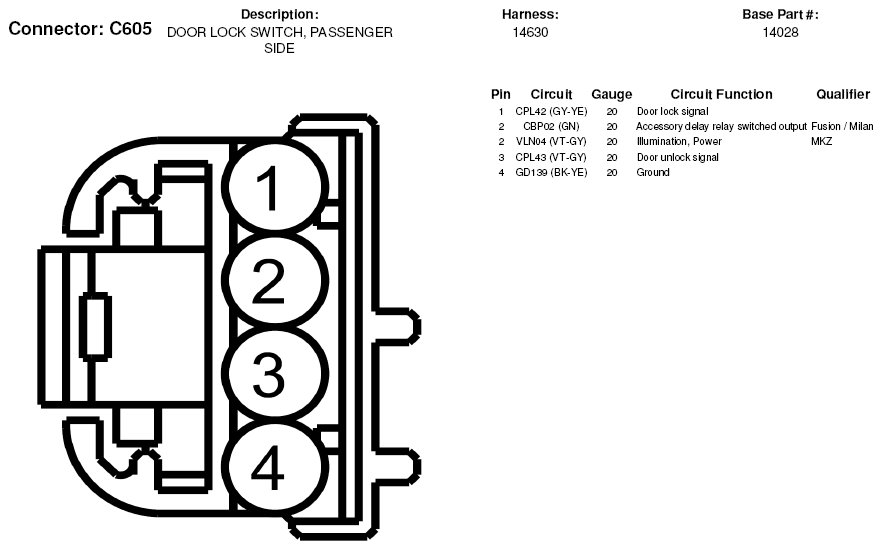

Fig 2: Door Lock Switch Connector End View (C605)
G05180728Courtesy of FORD MOTOR CO.
