Interior Lamp Connector

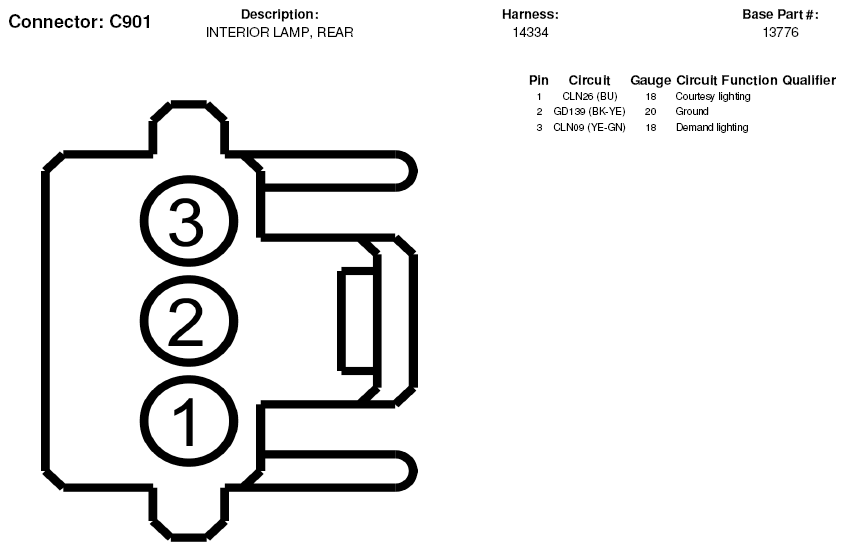

Fig 1: Interior Lamp Connector End View (C901)
G05180750Courtesy of FORD MOTOR CO.
Fig 2: Interior Lamp Connector End View (C918)
G05180757Courtesy of FORD MOTOR CO.

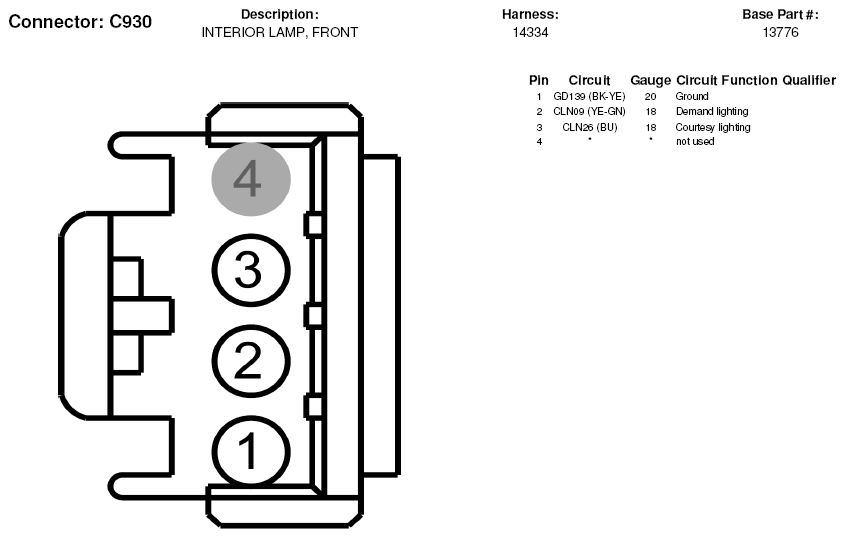

Fig 3: Interior Lamp Connector End View (C930)
G05180760Courtesy of FORD MOTOR CO.
