Power Window Motor Connectors

Fig 1: Power Window Motor Connector End View (C518)

Courtesy of FORD MOTOR CO.

Fig 2: Power Window Motor Connector End View (C540)

Courtesy of FORD MOTOR CO.

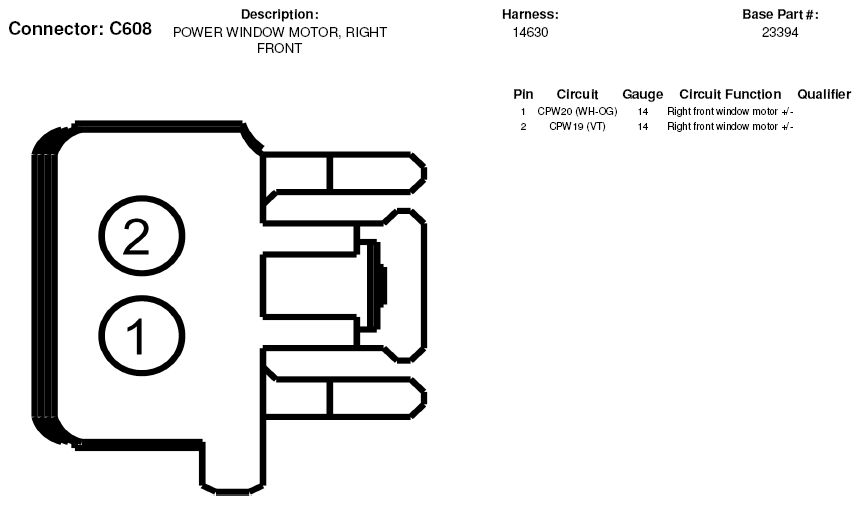

Fig 3: Power Window Motor Connector End View (C608)

Courtesy of FORD MOTOR CO.

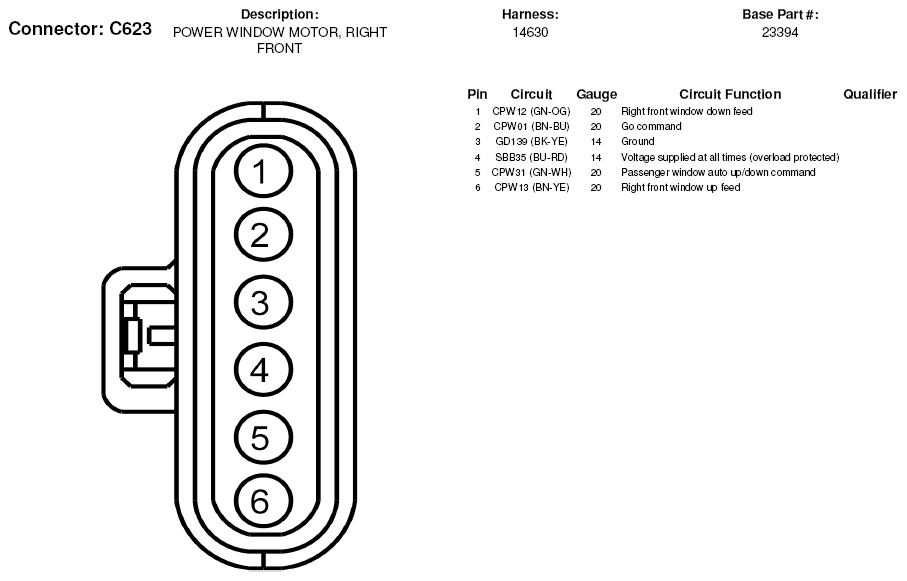

Fig 4: Power Window Motor Connector End View (C623)

Courtesy of FORD MOTOR CO.

Fig 5: Power Window Motor Connector End View (C726)

Courtesy of FORD MOTOR CO.

Fig 6: Power Window Motor Connector End View (C828)

Courtesy of FORD MOTOR CO.
