Subwoofer Amplifier Connector

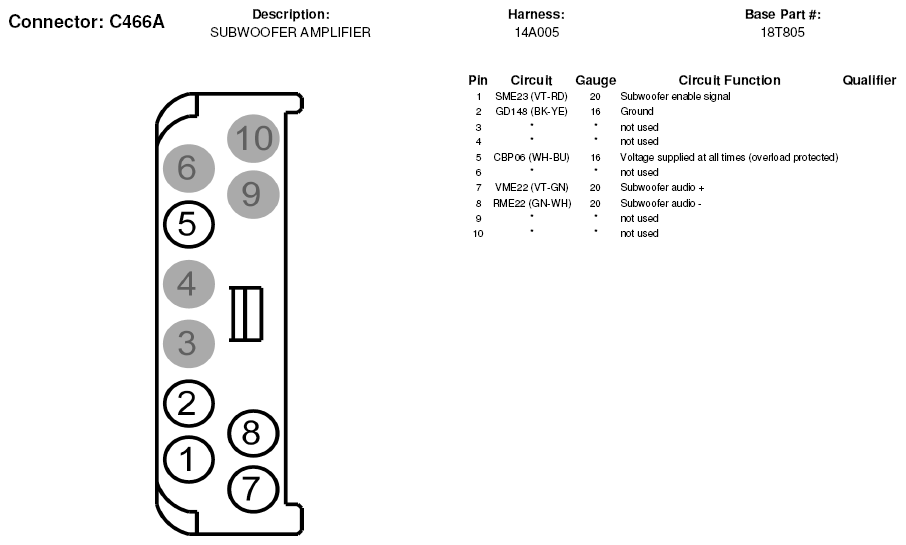

Fig 1: Subwoofer Amplifier Connector End View (C466A)
G05180700Courtesy of FORD MOTOR CO.

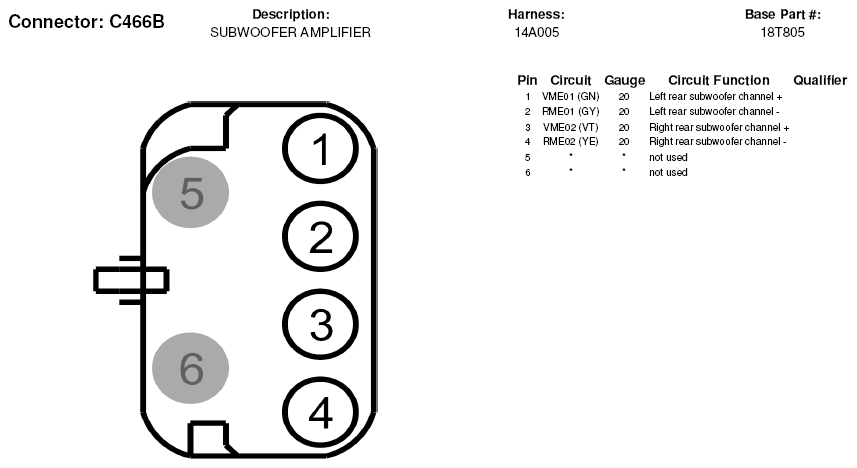

Fig 2: Subwoofer Amplifier Connector End View (C466B)
G05180701Courtesy of FORD MOTOR CO.
