Cylinder Head: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Valve Spring | 303-350 (T89P-6565-A) | |
| Compressor, Valve Spring | 303-300 (T87C-6565-A) | |
| Compressor, Valve Spring | 303-472 (T94P-6565-AH) | |
| Remover, Valve Stem Oil Seal | 303-468 (T94P-6510-AH) | |
| Installer, Valve Stem Oil Seal | 303-470 (T94P-6510-CH) | |
| Slide Hammer | 307-005 (T59L-100-B) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Multi-Purpose Grease XG-4 and/or XL-5 |
ESB-M1C93-B |

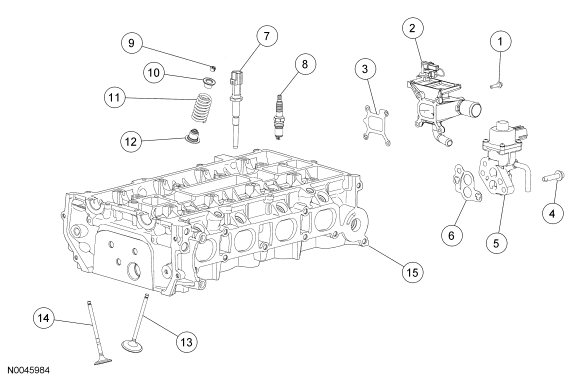

| Item | Part Number | Description |
|---|---|---|
