Engine Front Cover: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Remover, Oil Seal	303-409 (T92C-6700-CH)
	Installer, Front Oil Seal	303-096 (T74P-6150-A)

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

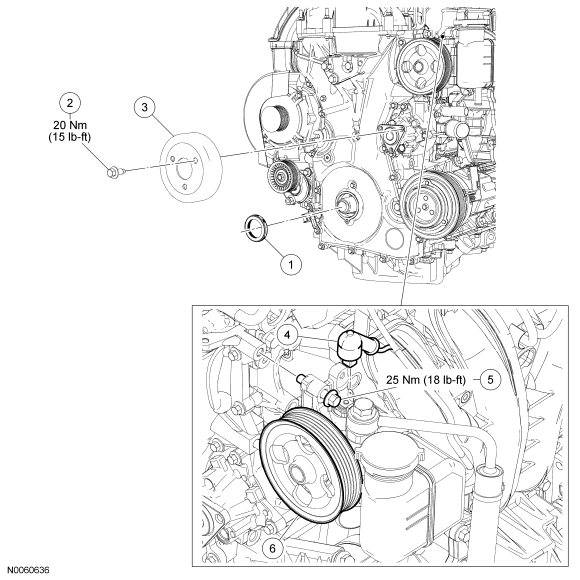

Fig 1: Exploded View Of Engine Front Cover With Torque Specifications (1 Of 2)

GF0028716

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6700	Crankshaft front seal
2	W500221	Coolant pump pulley bolt (3 required)
3	8509	Coolant pump pulley
4	-	Power steering pressure (PSP) switch electrical connector (part of 12B637)
5	W500315	Power steering pump bolt (3 required)
6	3A696	Power steering pump

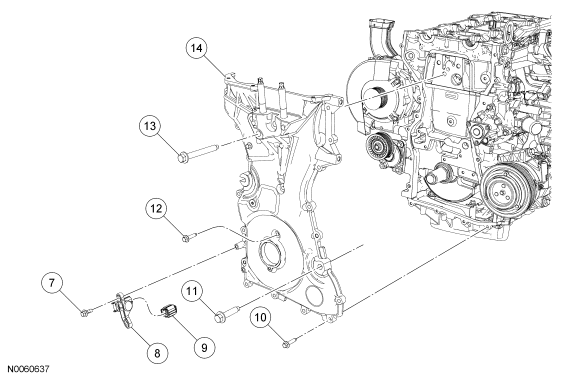

Fig 2: Exploded View Of Engine Front Cover (2 Of 2)

GF0028717

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
7	W701219-S	Crankshaft position (CKP) sensor bolt (2 required)
8	6C315	CKP sensor
9	14A464	CKP sensor electrical connector (part of 12B637)
10	W500215	Engine front cover bolt (17 required)
11	W500320	Engine front cover bolt
12	W500300	Engine front cover bolt
13	W500328	Engine front cover bolt
14	6019	Engine front cover
