Engine Lubrication Components - Exploded View

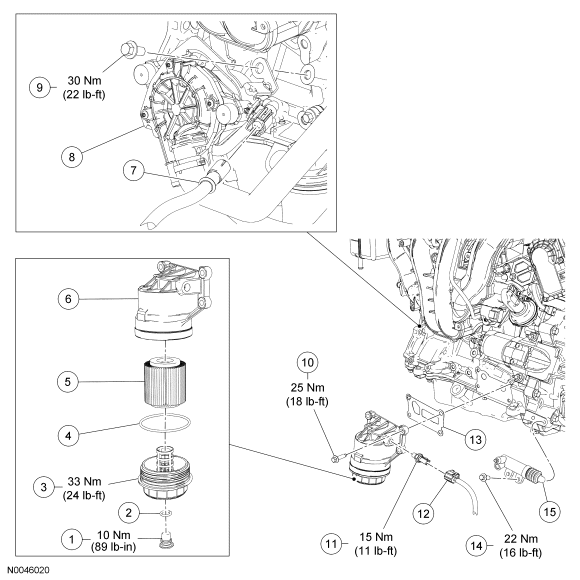

Fig 1: Exploded View Of Oil Filter Element, Oil Filter Adapter & Oil Pressure Sender With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6C684	Oil filter drain plug
2	W707718	Oil filter drain plug O-ring seal
3	6A832	Oil filter cover
4	6885	Oil filter cover O-ring seal
5	6744	Oil filter element
6	6884	Oil filter adapter
7	14A464	Secondary air injection (AIR) pump electrical connector (part of 12B637)
8	9A486A	AIR pump
9	W500032	AIR pump bolt (3 required)
10	W500225	Oil filter adapter bolt (4 required)
11	9278	Oil pressure sender
12	14A464	Oil pressure sender electrical connector (part of 12B637)
13	6A636	Oil filter adapter gasket
14	7A508	Clutch slave cylinder bolt (2 required)
15	W706360	Clutch slave cylinder

NOTE: Automatic transmission shown, manual transmission similar.

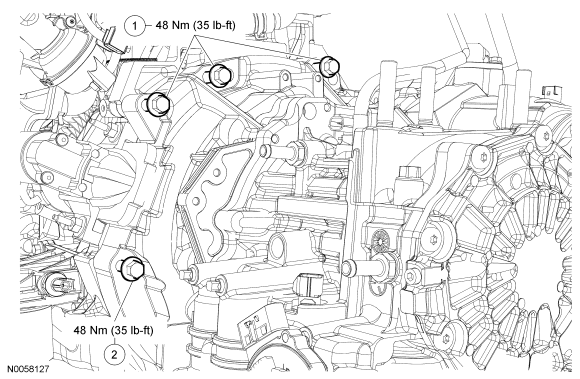

Fig 2: Exploded View Of Oil Pan, Oil Pump Screen & Pickup Tube With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706215	Upper bellhousing-to-engine bolts
2	W500125	Front lower bellhousing-to-engine bolt (1 required for automatic transmission) (2 required for manual transmission)

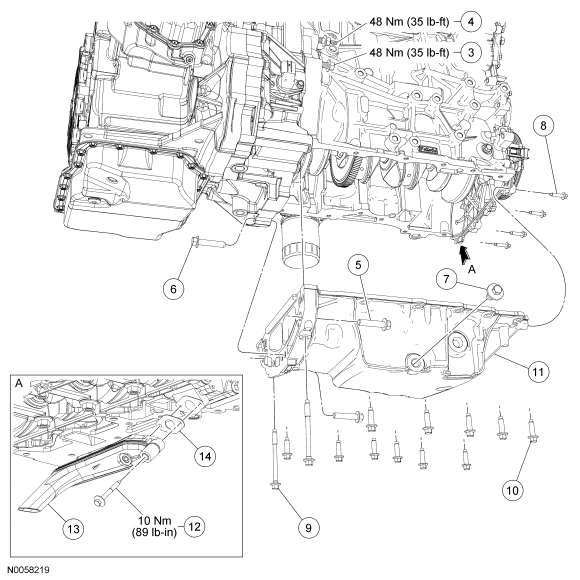

Fig 3: Exploded View Of Engine Lubrication Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
3	W500120	Rear lower engine-to-bellhousing bolt
4	W500124	Rear lower engine-to-bellhousing stud bolt
5	W500122	Oil pan-to-bellhousing bolt (2 required)
6	W500122	Bellhousing-to-oil pan bolt
7	6730	Oil pan drain plug
8	W500215	Engine front cover-to-oil pan bolt (4 required)
9	W706284	Oil pan bolt (2 required)
10	W500224	Oil pan bolt (11 required)
11	6675	Oil pan
12	W706282	Oil pump screen and pickup tube bolt (2 required)
13	6622	Oil pump screen and pickup tube
14	6625	Oil pump screen and pickup tube gasket

Fig 4: Exploded View Of Oil Pump With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W703651	Oil pump chain guide shoulder bolt (2 required) (early build)
2	6M256	Oil pump chain guide (early build)
3	W703651	Oil pump drive chain tensioner shoulder bolt
4	6C271	Oil pump drive chain tensioner
5	6A895	Oil pump drive chain
6	W704397	Oil pump sprocket bolt
7	6652	Oil pump sprocket
8	W703647	Oil pump bolt (4 required)
9	6600	Oil pump
