Engine Mount: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| 3-Bar Engine Support Kit | 303-F072 |

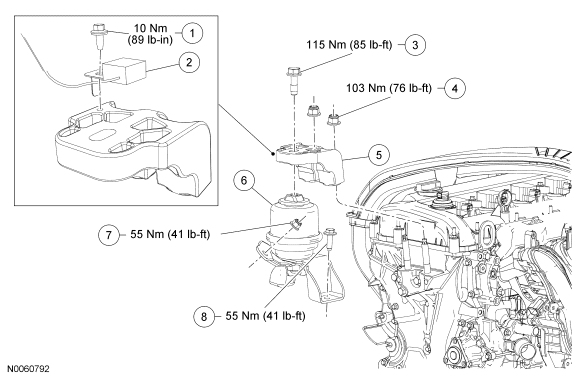

| Item | Part Number | Description |
|---|---|---|
| 1 | W705936 | Radio interference capacitor bolt |
| 2 | 19A095 | Radio frequency interference capacitor |
| 3 | W711684 | Engine mount bracket bolt |
| 4 | W520214 | Engine mount bracket nut (2 required) |
| 5 | 6A094 | Engine mount bracket |
| 6 | 6F012 | Engine mount |
| 7 | W711578 | Engine mount nut |
| 8 | W706496 | Engine mount bolt (2 required) |
