Intake Manifold: Notes

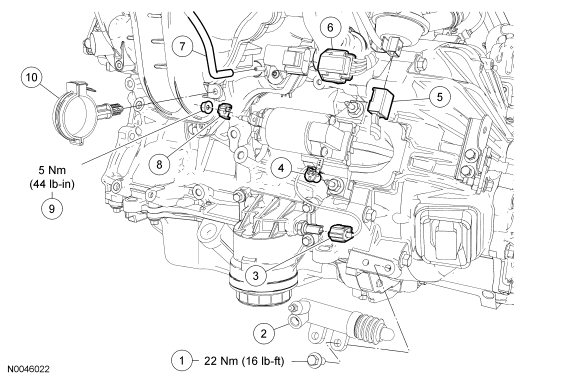

Fig 1: Exploded View Of Intake Manifold With Torque Specifications (1 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7A508	Clutch slave cylinder bolt (2 required)
2	W706360	Clutch slave cylinder
3	14A464	Oil pressure sender electrical connector (part of 12B637)
4	14A169	Wiring harness retainer (part of 12B637)
5	14A464	Intake manifold runner control (IMRC) actuator electrical connector.
6	14A464	Manifold absolute pressure (MAP) sensor electrical connector (part of 12B637)
7	9D430	Secondary air injection (AIR) vacuum tube (part of 9G442)
8	N805320	Starter S-terminal nut
9	14463	Starter S-terminal wire
10	-	Radiator hose retainer clip

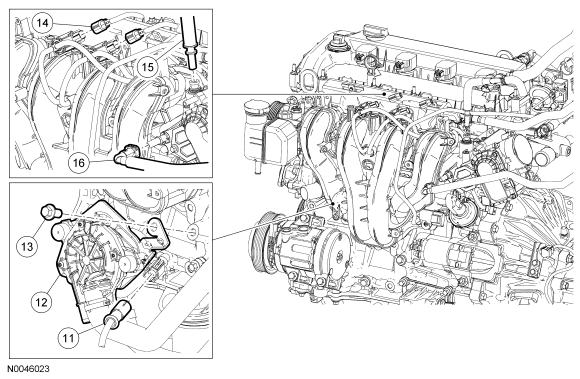

Fig 2: Exploded View Of Intake Manifold (2 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
11	14A464	Secondary air injection (AIR) pump electrical connector (part of 12B637)
12	9A486A	AIR pump
13	W500032	AIR pump bolt (3 required)
14	14A464	Swirl control valve electrical connector (2 required) (part of 12B637)
15	19D848	Brake booster vacuum supply tube
16	9D289	Evaporative emissions (EVAP) tube

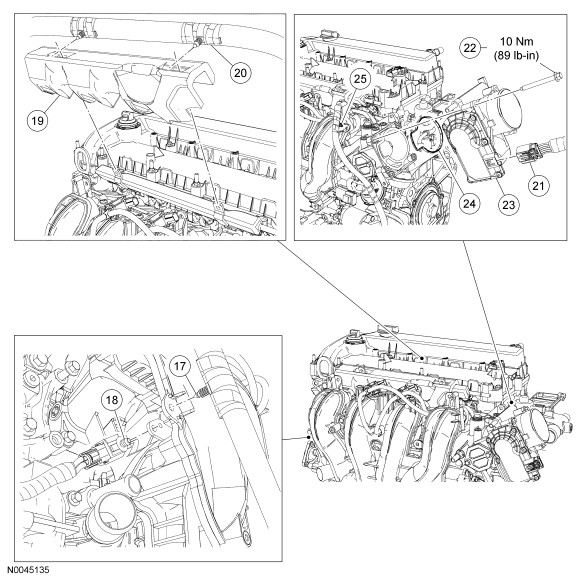

Fig 3: Exploded View Of Intake Manifold With Torque Specification (3 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
17	-	Pin-type retainer (part of 12B637)
18	-	Pin-type retainer (part of 12B637)
19	9U550	Fuel rail insulator
20	-	Pin-type retainer (part of 12B637)
21	14A464	Throttle body electrical connector (part of 12B637)
22	W500305	Throttle body bolt (4 required)
23	9F991	Throttle body
24	-	Throttle body gasket
25	-	Pin-type retainer (part of 12B637)

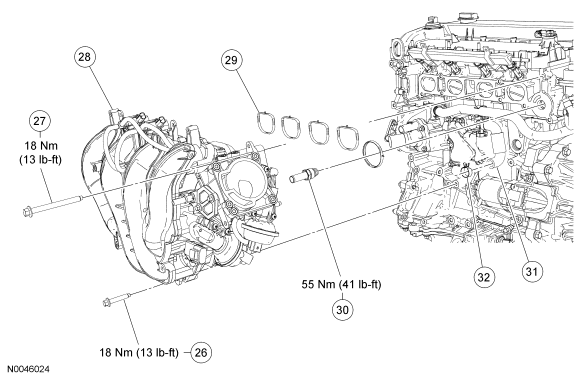

Fig 4: Exploded View Of Intake Manifold With Torque Specifications (4 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
26	W500311	Intake manifold bolt (6 required)
27	W500319	Intake manifold bolt (2 required)
28	9424	Intake manifold
29	9461	Intake manifold gasket
30	9E470	Exhaust gas recirculation (EGR) tube
31	6758	Crankcase vent hose
32	-	Crankcase vent hose clamp (part of 6758)
