Valve Cover: Notes
Material
| Item | Specification |
|---|---|
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

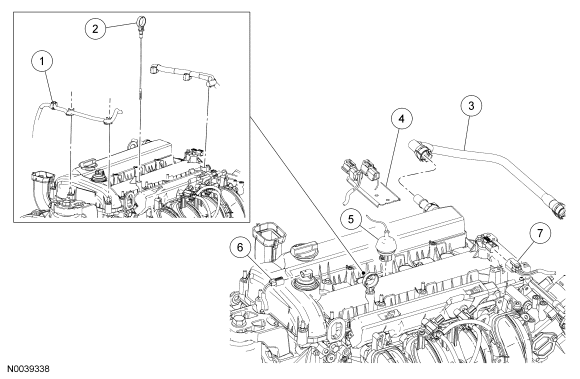

| Item | Part Number | Description |
|---|---|---|
| 1 | 95318 | Engine wiring harness retainers (part of 12B637) |
| 2 | 6750 | Oil level indicator |
| 3 | 6853 | Crankcase vent hose |
| 4 | 14W163 | Engine wiring harness bracket |
| 5 | 14A464 | Cylinder head temperature (CHT) sensor electrical connector (part of 12B637) |
| 6 | 14A464 | Variable camshaft timing (VCT) sensor electrical connector (part of 12B637) |
| 7 | 14A464 | Camshaft position (CMP) sensor electrical connector (part of 12B637) |

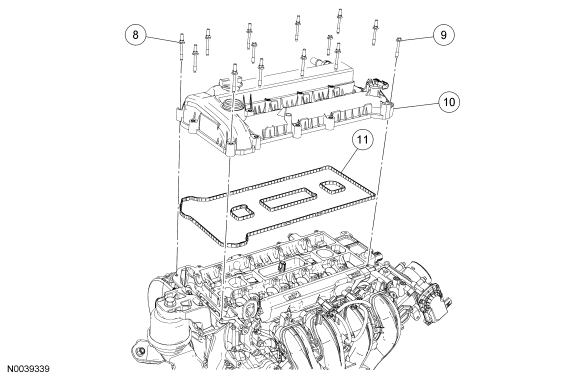

| Item | Part Number | Description |
|---|---|---|
| 8 | 6C293 | Valve cover stud bolt (11 required) |
| 9 | W500215 | Valve cover bolt (3 required) |
| 10 | 6K271 | Valve cover |
| 11 | 6K260 | Valve cover gasket |
