Hoist/Jack
›
Jacking And Lifting
›
Description And Operation
›
Jacking
›
Jacking Points - Front
Jacking Points - Front

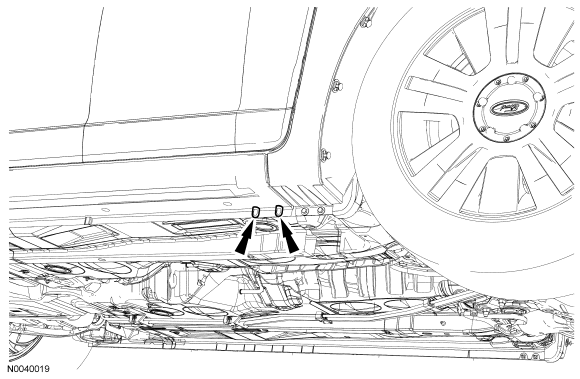

Fig 1: Identifying Jacking Points - Front
Courtesy of FORD MOTOR CO.
The front jacking points are identified by 2 indentations in the frame just behind the front wheels. Position the jack so its lift area fits between the 2 points.
