Ford
›
2007
›
Fusion S, Standard
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector Views
›
Audio Unit Connectors
Audio Unit Connectors

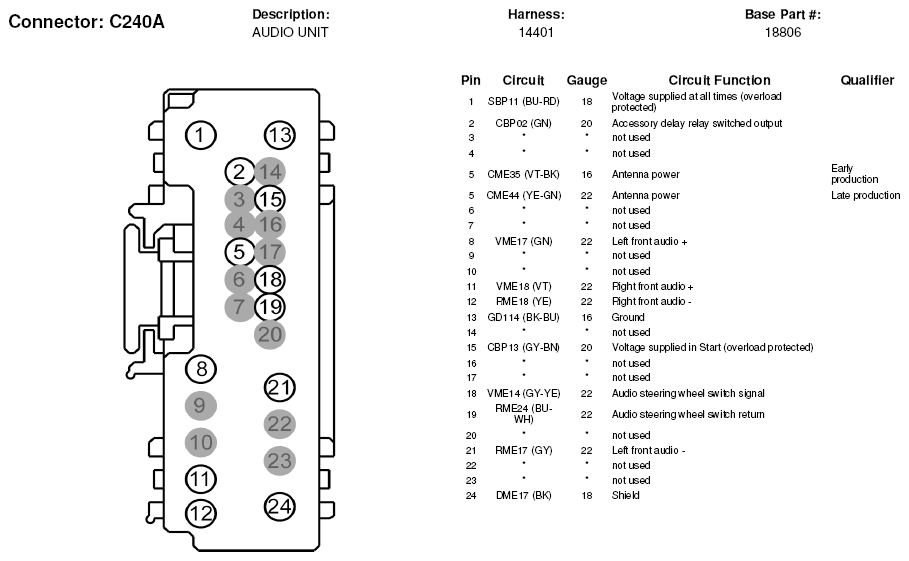

Fig 1: Audio Unit Connector End View (C240A)
Courtesy of FORD MOTOR CO.

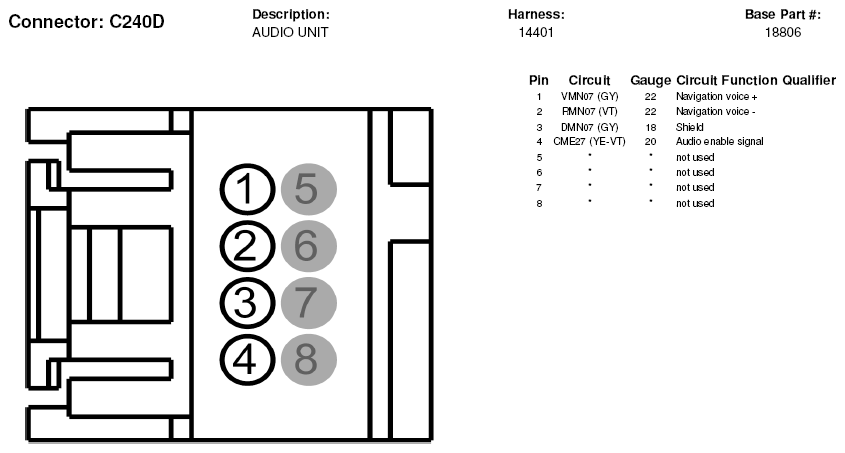

Fig 2: Audio Unit Connector End View (C240C)
Courtesy of FORD MOTOR CO.
Fig 3: Audio Unit Connector End View (C240D)
Courtesy of FORD MOTOR CO.

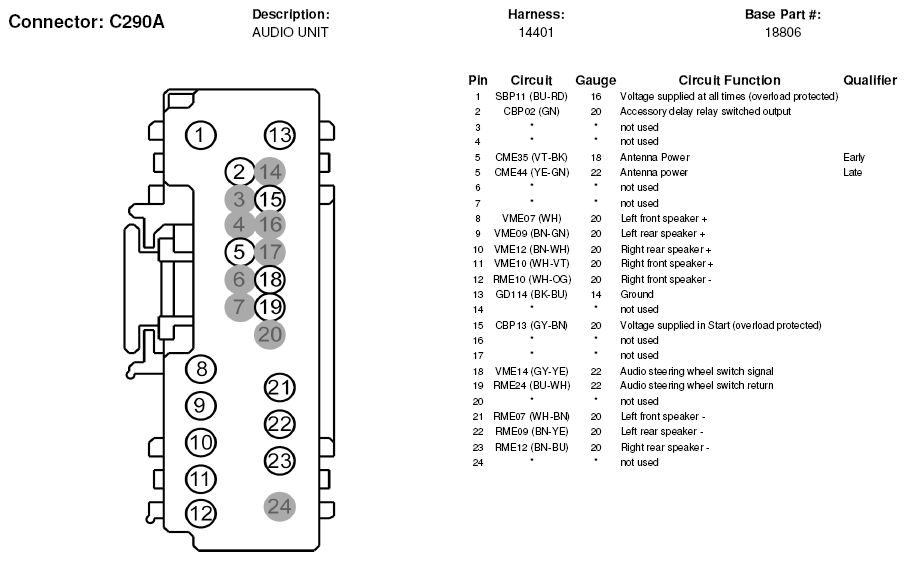

Fig 4: Audio Unit Connector End View (C290A)
Courtesy of FORD MOTOR CO.

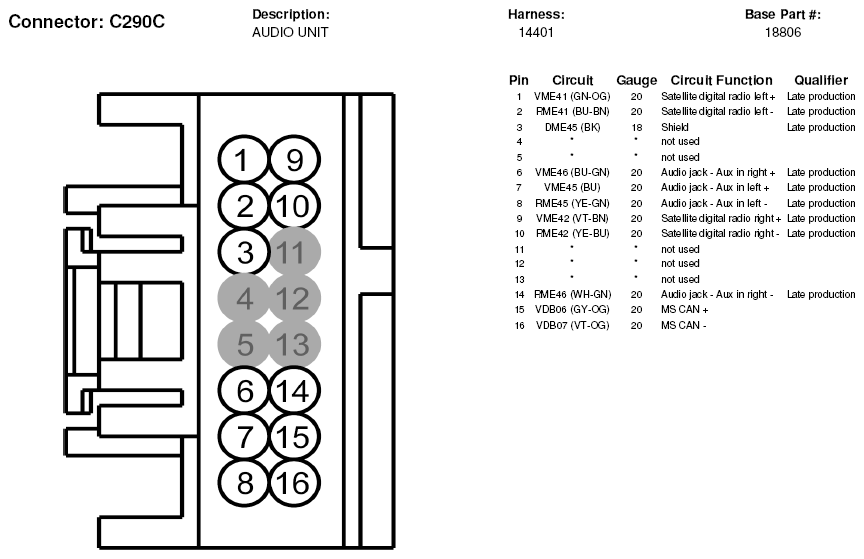

Fig 5: Audio Unit Connector End View (C290C)
Courtesy of FORD MOTOR CO.

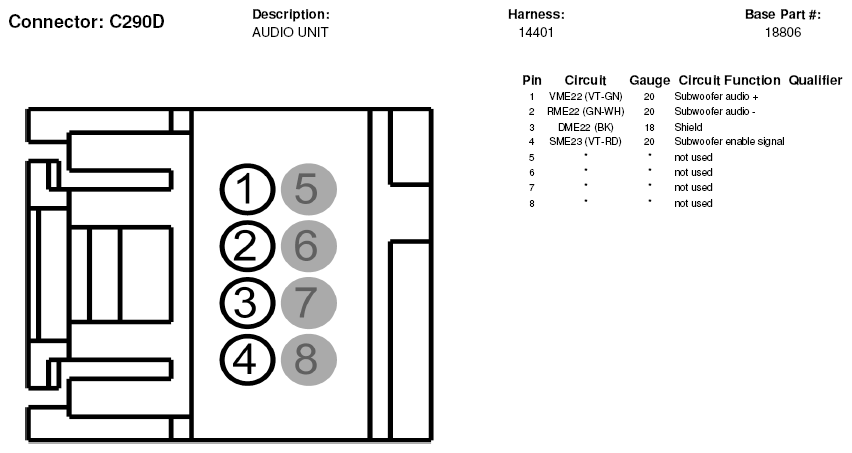

Fig 6: Audio Unit Connector End View (C290D)
Courtesy of FORD MOTOR CO.
