Hydraulic Control Unit (HCU): Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada)	ESA-M6C25-A or WSS-M6C62-A

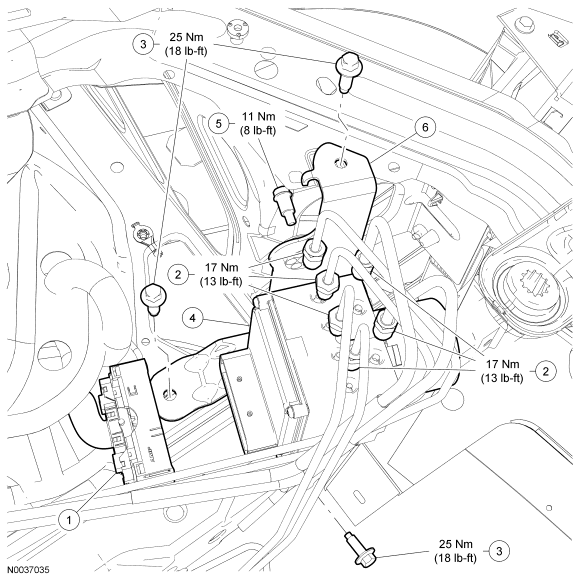

Fig 1: Hydraulic Control Unit (HCU) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Anti-lock brake system (ABS) module electrical connector (part of 14A005)
2	-	Brake tube-to-hydraulic control unit (HCU) fittings (part of 2C296) (6 required)
3	13083701	HCU bracket-to-frame bolts (3 required)
4	2C215	HCU
5	3B676	Bracket-to-HCU bolt
6	2C304	HCU bracket
