Anti-Lock Brake System Module Connector

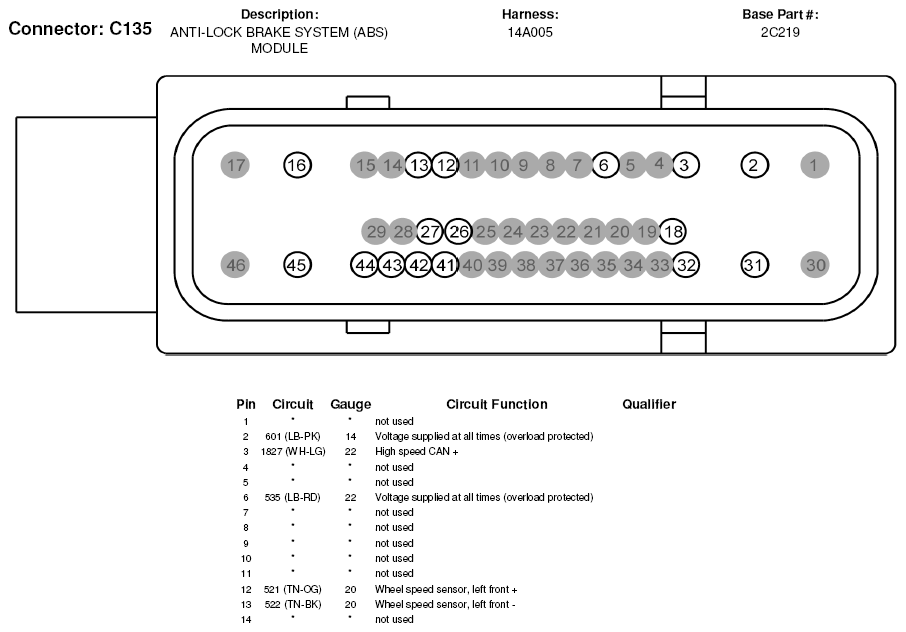

Fig 1: Anti-Lock Brake System Module Connector End View (C135) (1 Of 2)
G05183160Courtesy of FORD MOTOR CO.
Fig 2: Anti-Lock Brake System Module Connector End View (C135) (2 Of 2)
G05183161Courtesy of FORD MOTOR CO.
