Anti-Theft Inhibit Switch Connector
Anti-Theft Inhibit Switch Connector

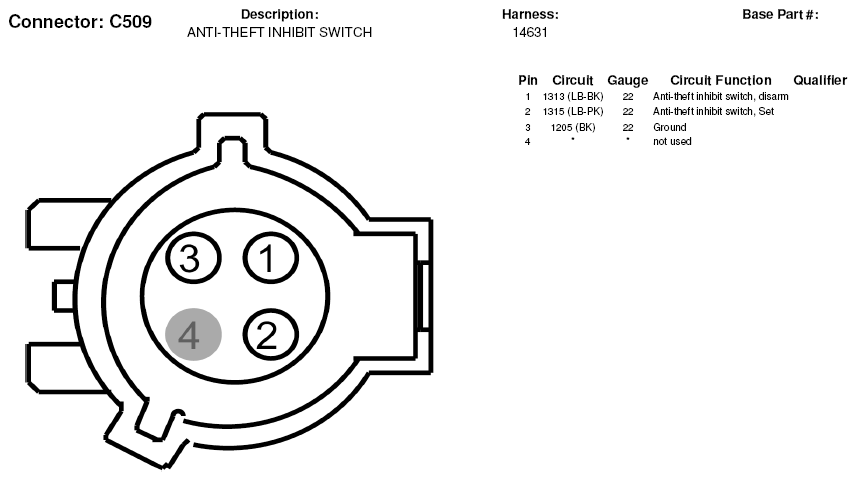

Fig 1: Anti-Theft Inhibit Switch Connector End View (C509)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
