Clock Spring Connector
Clock Spring Connector

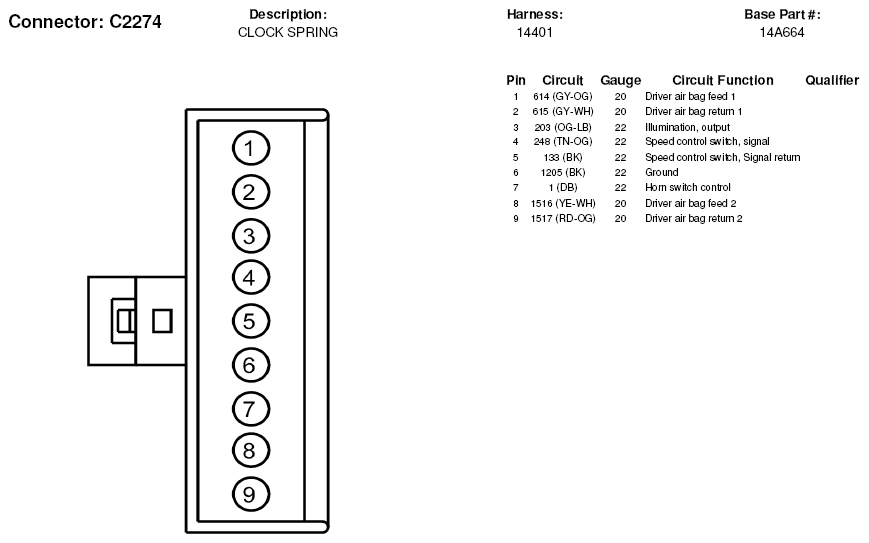

Fig 1: Clock Spring Connector End View (C2274)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
