Front Blower Motor Connector
Front Blower Motor Connector

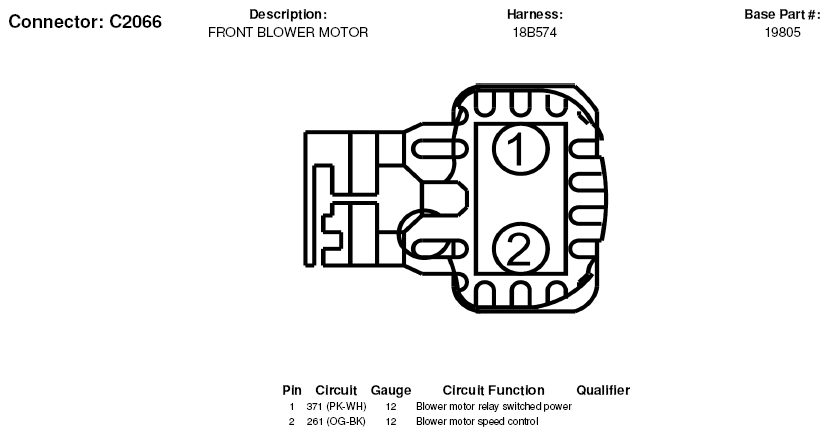

Fig 1: Front Blower Motor Connector End View (C2066)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
