Fuel Injector Connectors
Fuel Injector Connectors
Fig 1: Fuel Injector 1 Connector End View (C1181)
Courtesy of FORD MOTOR CO.
Fig 2: Fuel Injector 2 Connector End View (C1182)
Courtesy of FORD MOTOR CO.
Fig 3: Fuel Injector 3 Connector End View (C1183)
Courtesy of FORD MOTOR CO.

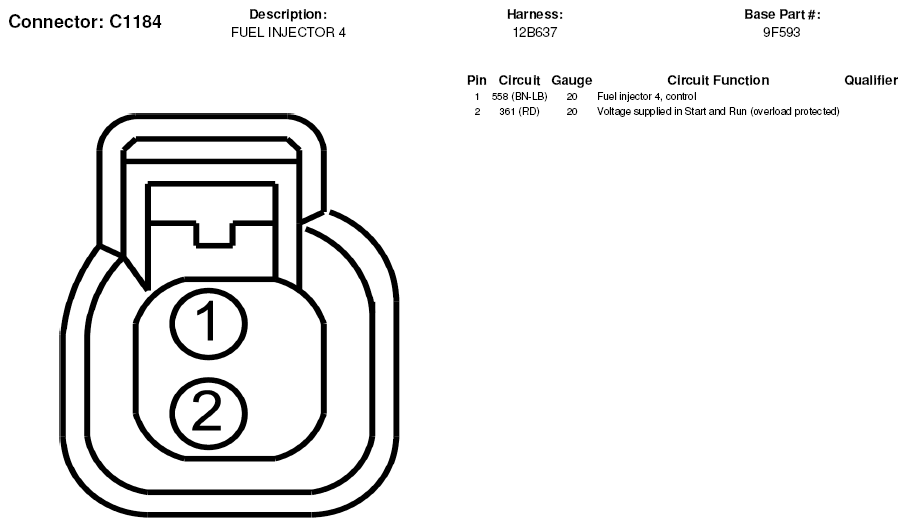

Fig 4: Fuel Injector 4 Connector End View (C1184)
Courtesy of FORD MOTOR CO.
Fig 5: Fuel Injector 5 Connector End View (C1185)
Courtesy of FORD MOTOR CO.

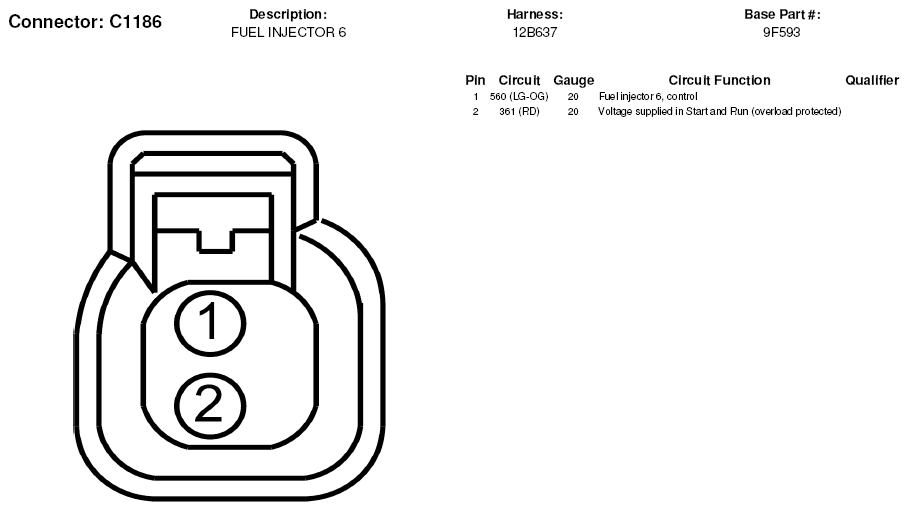

Fig 6: Fuel Injector 6 Connector End View (C1186)
Courtesy of FORD MOTOR CO.

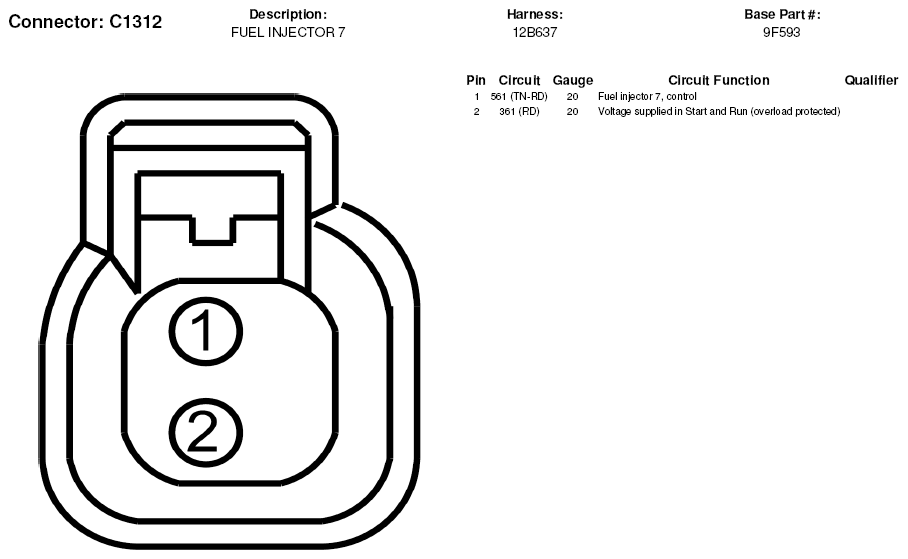

Fig 7: Fuel Injector 7 Connector End View (C1312)
Courtesy of FORD MOTOR CO.

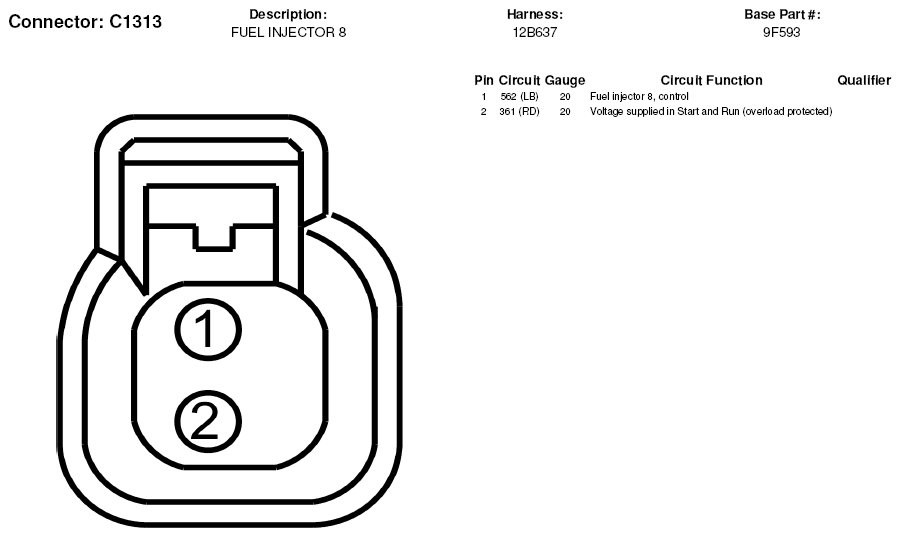

Fig 8: Fuel Injector 8 Connector End View (C1313)
Courtesy of FORD MOTOR CO.
