Fuel Pump Driver Module Connector

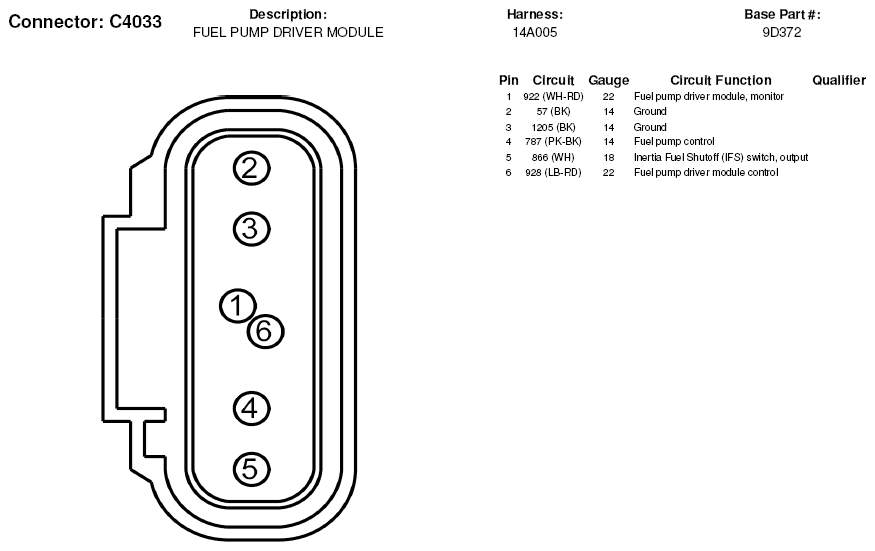

Fig 1: Fuel Pump Driver Module Connector End View (C4033)
G05183383Courtesy of FORD MOTOR CO.
