Fuel Sender Connector
Fuel Sender Connector

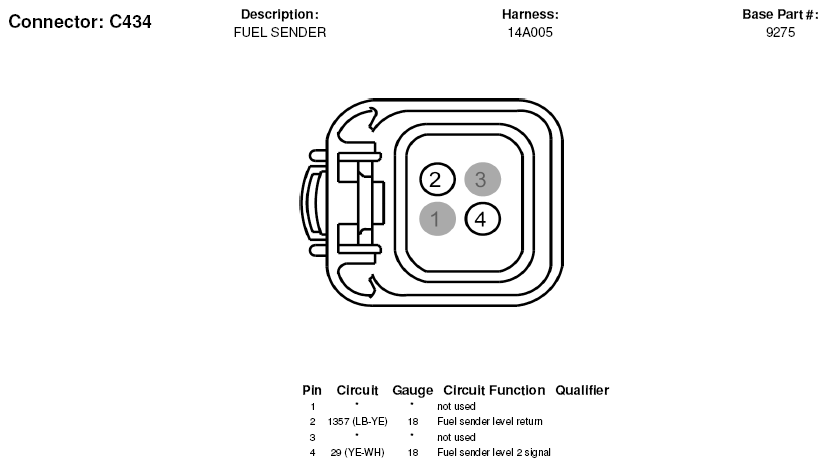

Fig 1: Fuel Sender Connector End View (C434)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
