Inline Connectors

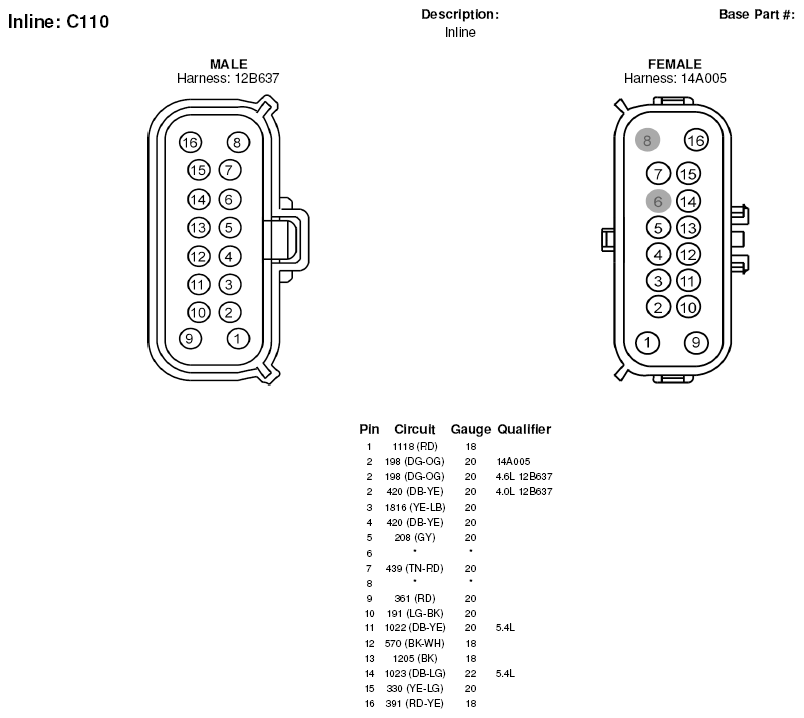

Fig 1: Inline Connector End View (C110)

G05183141

Courtesy of FORD MOTOR CO.

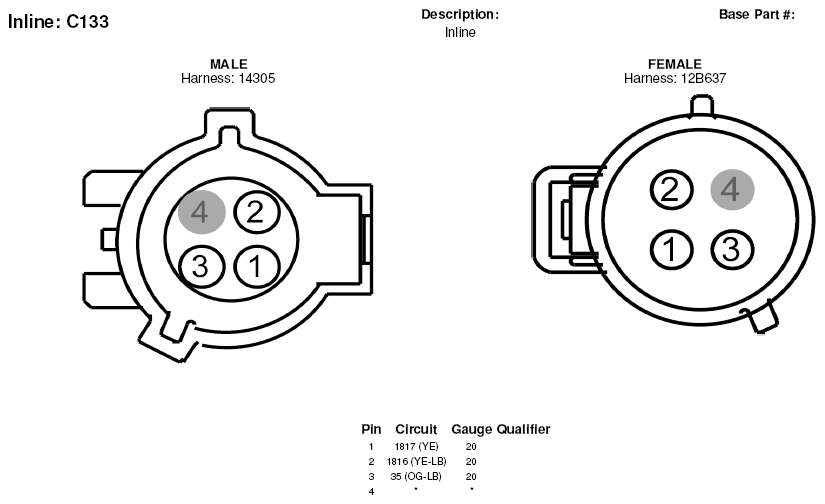

Fig 2: Inline Connector End View (C133)

G05183158

Courtesy of FORD MOTOR CO.

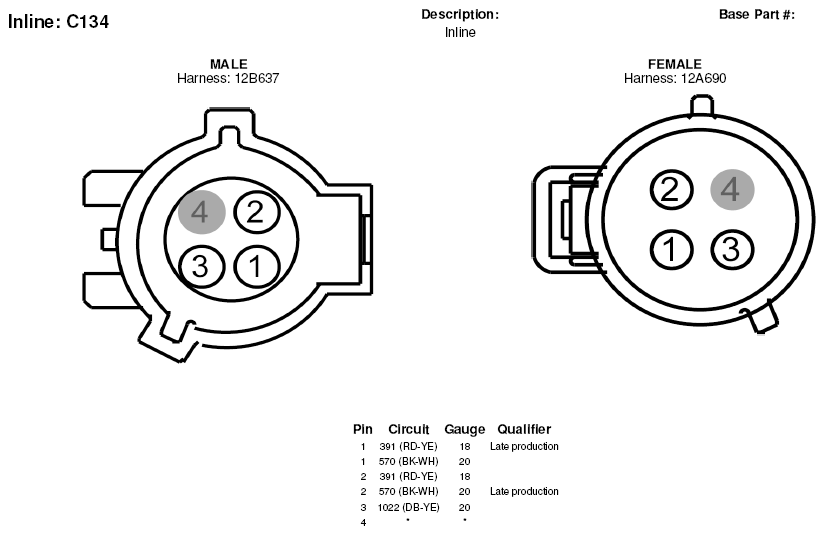

Fig 3: Inline Connector End View (C134)

G05183159

Courtesy of FORD MOTOR CO.

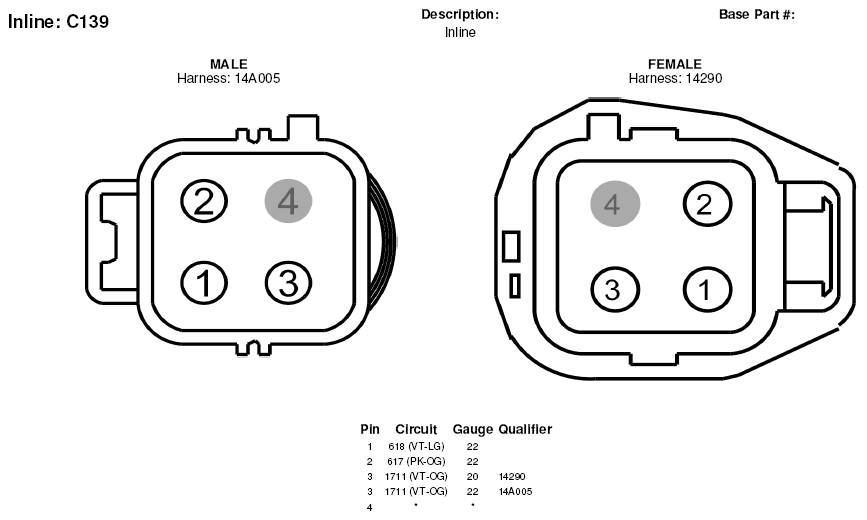

Fig 4: Inline Connector End View (C139)

G05183163

Courtesy of FORD MOTOR CO.

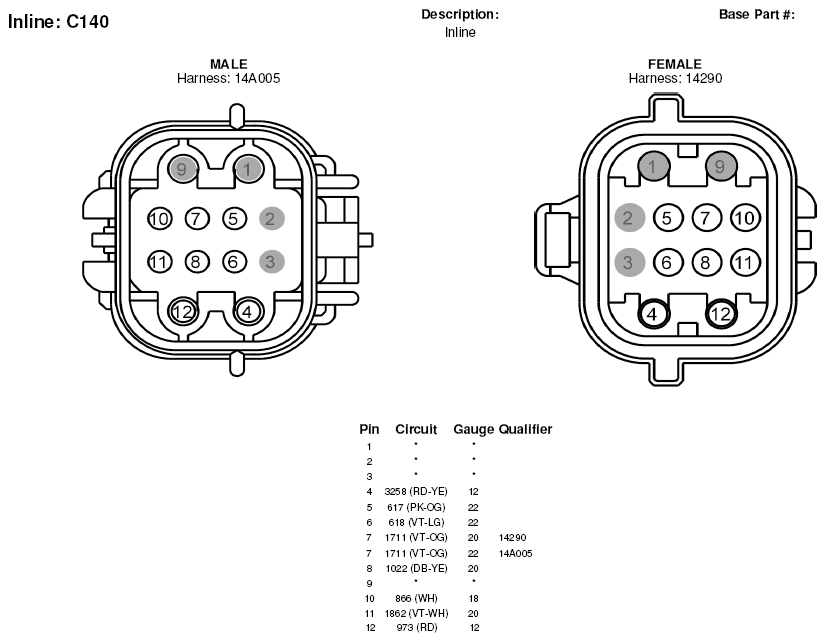

Fig 5: Inline Connector End View (C140)

G05183164

Courtesy of FORD MOTOR CO.

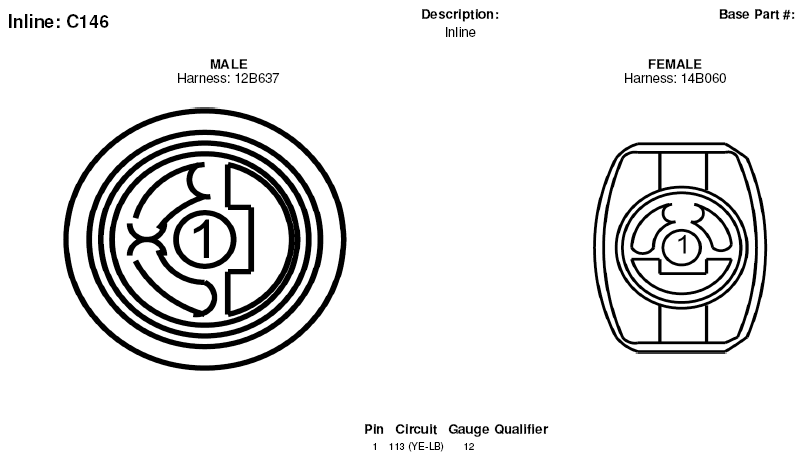

Fig 6: Inline Connector End View (C146)

G05183168

Courtesy of FORD MOTOR CO.

Fig 7: Inline Connector End View (C210) (1 Of 2)

G05183197

Courtesy of FORD MOTOR CO.

Fig 8: Inline Connector End View (C210) (2 Of 2)

G05183198

Courtesy of FORD MOTOR CO.

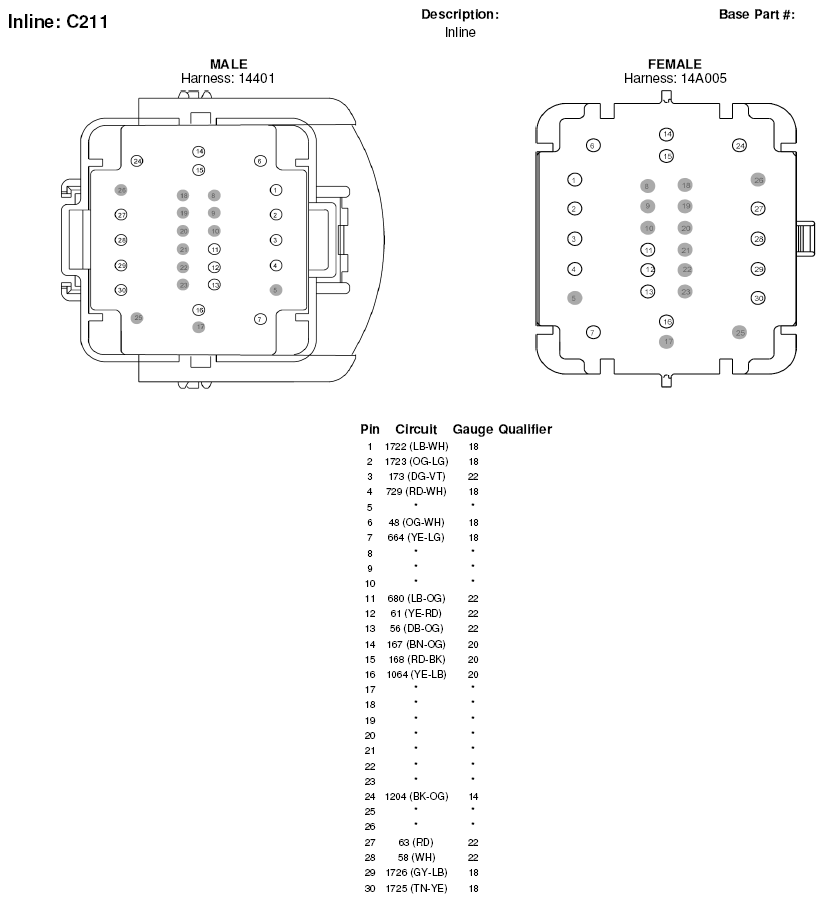

Fig 9: Inline Connector End View (C211)

G05183199

Courtesy of FORD MOTOR CO.

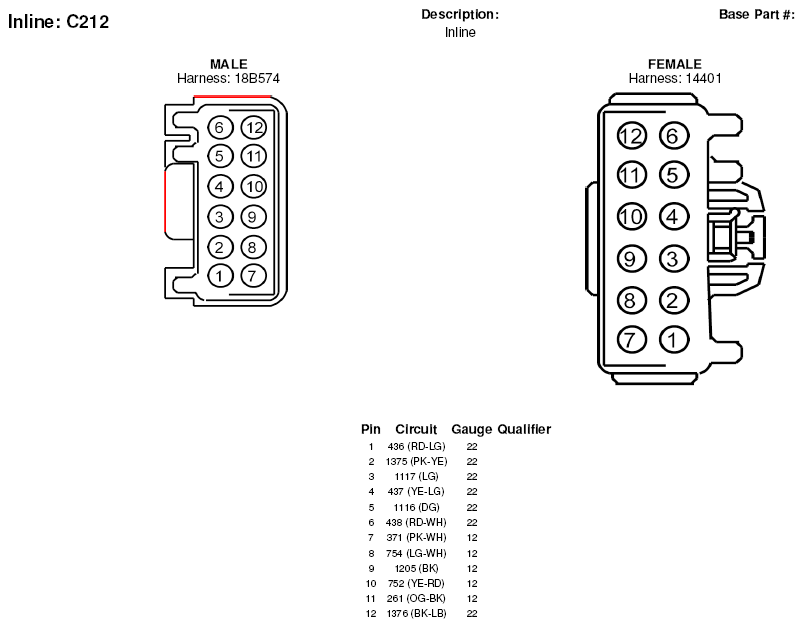

Fig 10: Inline Connector End View (C212)

G05183200

Courtesy of FORD MOTOR CO.

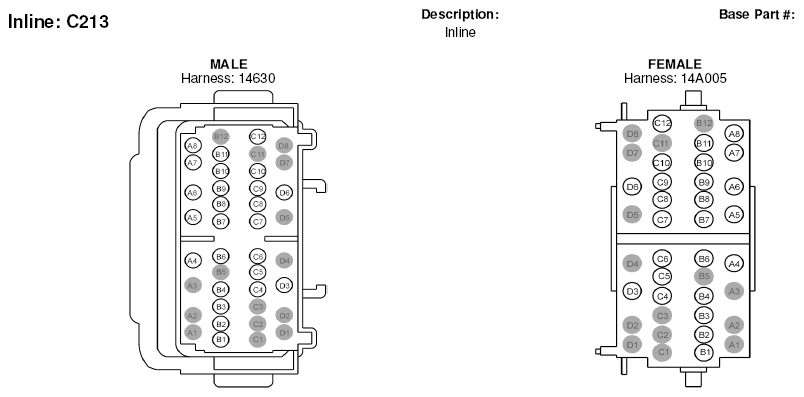

Fig 11: Inline Connector End View (C213) (1 Of 2)

G05183201

Courtesy of FORD MOTOR CO.

Fig 12: Inline Connector End View (C213) (2 Of 2)

G05183202

Courtesy of FORD MOTOR CO.

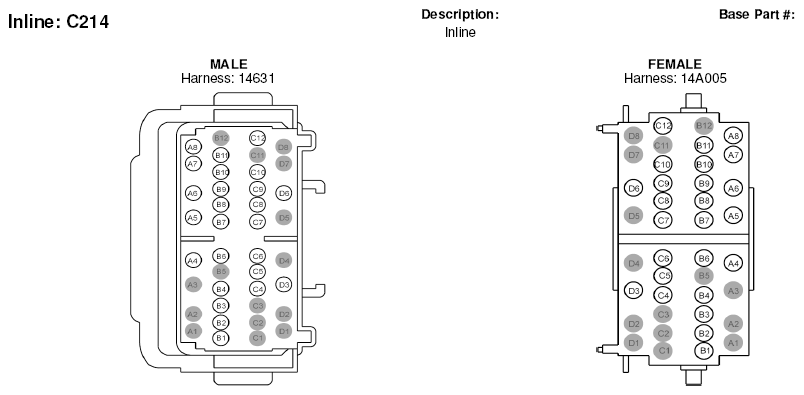

Fig 13: Inline Connector End View (C214) (1 Of 2)

G05183203

Courtesy of FORD MOTOR CO.

Fig 14: Inline Connector End View (C214) (2 Of 2)

G05183204

Courtesy of FORD MOTOR CO.

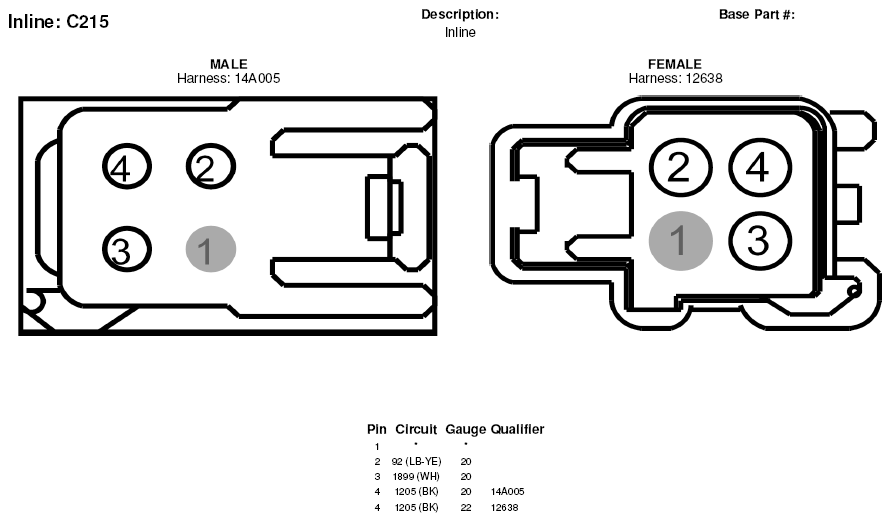

Fig 15: Inline Connector End View (C215)

G05183205

Courtesy of FORD MOTOR CO.

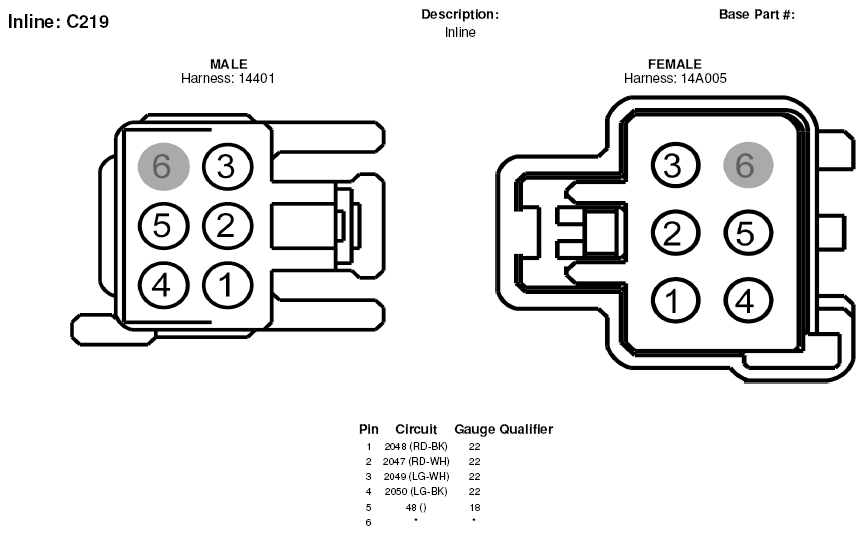

Fig 16: Inline Connector End View (C219)

G05183206

Courtesy of FORD MOTOR CO.

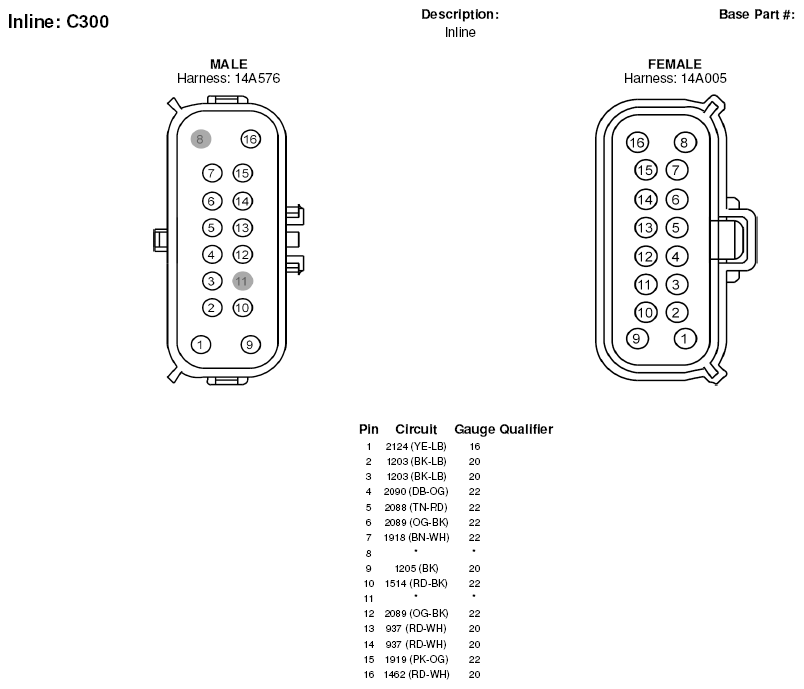

Fig 17: Inline Connector End View (C300)

G05183224

Courtesy of FORD MOTOR CO.

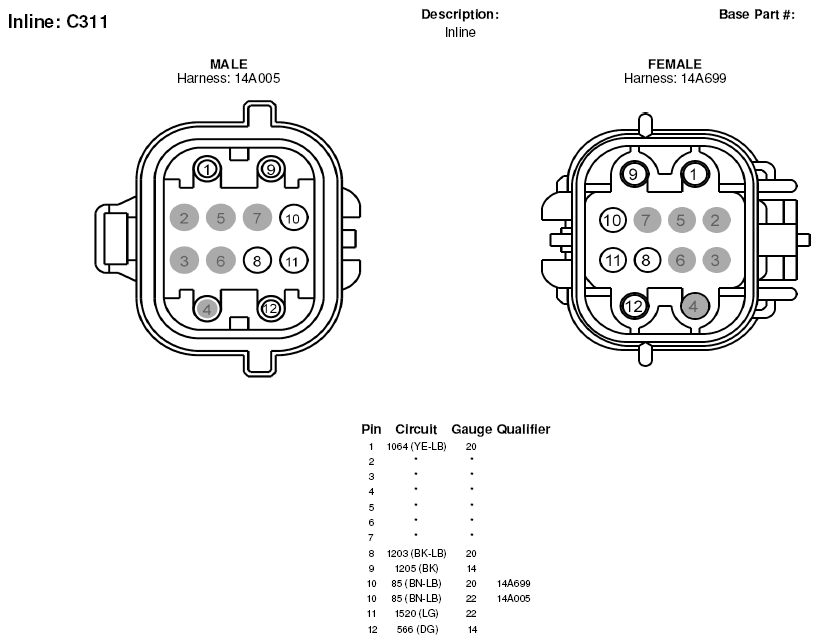

Fig 18: Inline Connector End View (C311)

G05183228

Courtesy of FORD MOTOR CO.

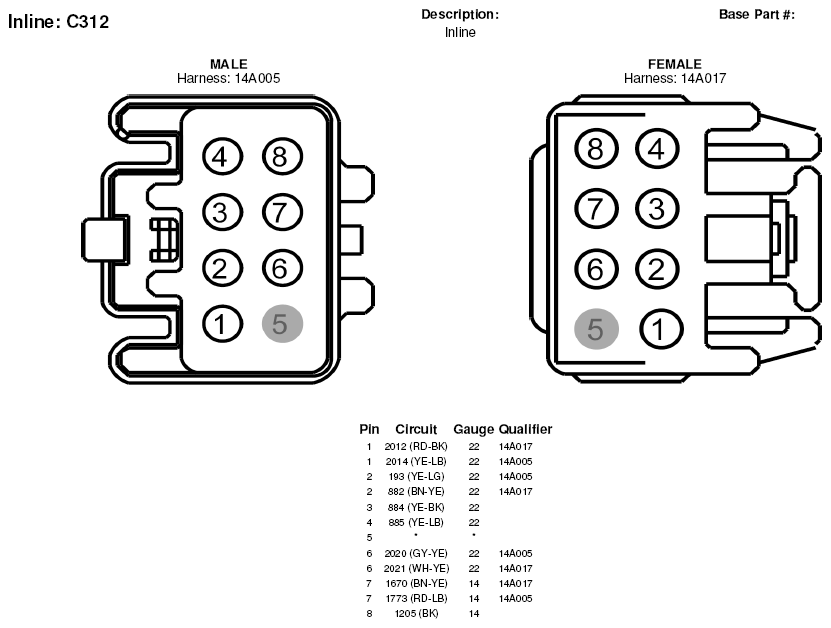

Fig 19: Inline Connector End View (C312)

G05183229

Courtesy of FORD MOTOR CO.

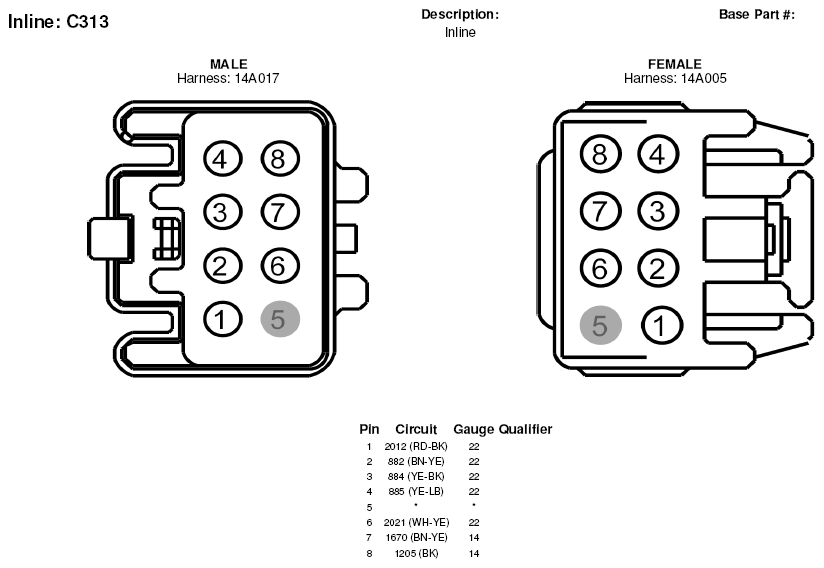

Fig 20: Inline Connector End View (C313)

G05183230

Courtesy of FORD MOTOR CO.

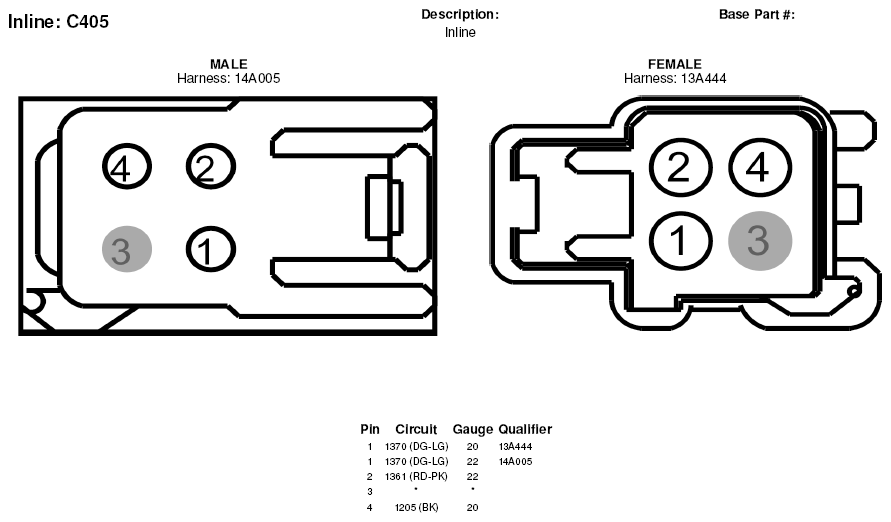

Fig 21: Inline Connector End View (C405)

G05183247

Courtesy of FORD MOTOR CO.

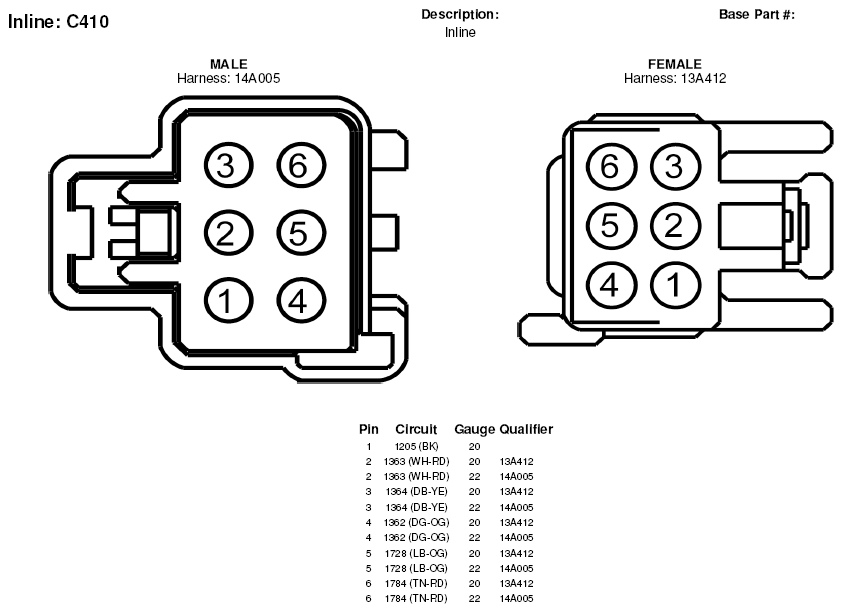

Fig 22: Inline Connector End View (C410)

G05183248

Courtesy of FORD MOTOR CO.

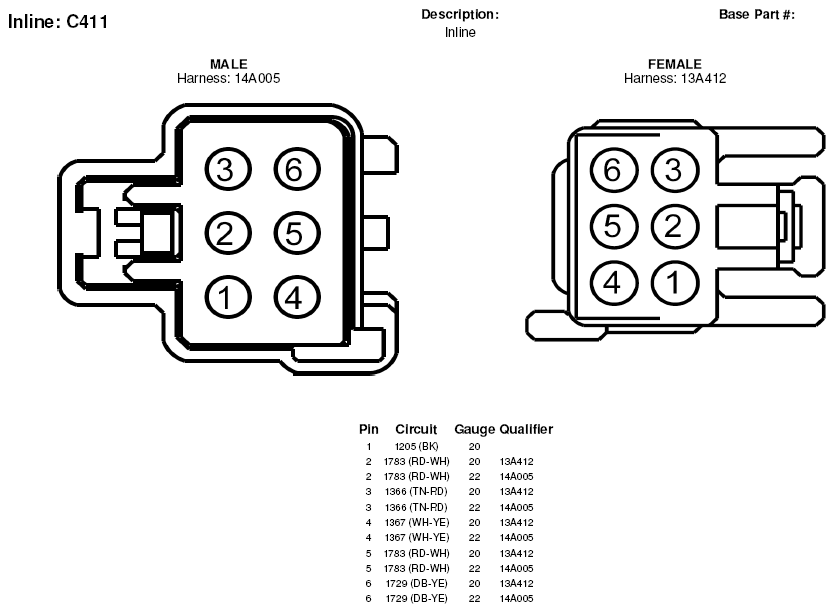

Fig 23: Inline Connector End View (C411)

G05183249

Courtesy of FORD MOTOR CO.

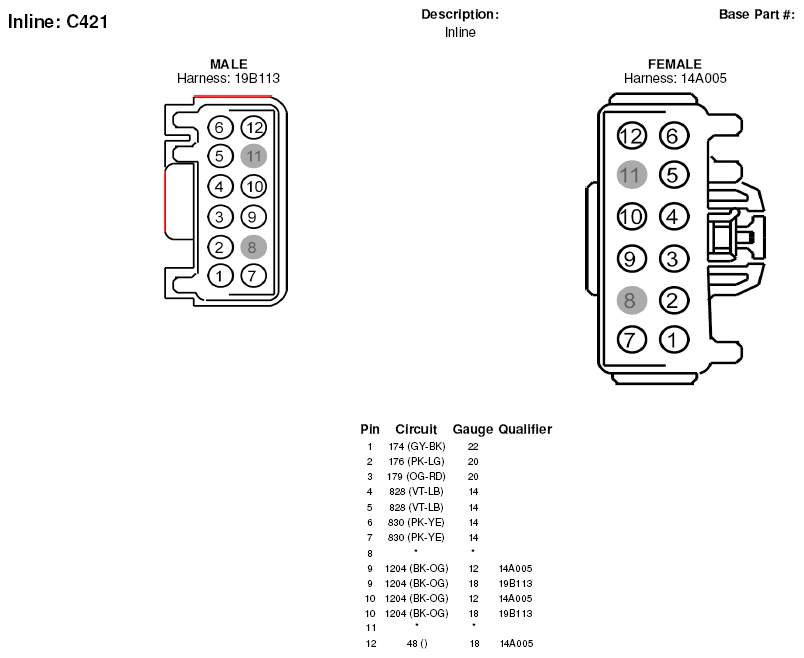

Fig 24: Inline Connector End View (C421)

G05183252

Courtesy of FORD MOTOR CO.

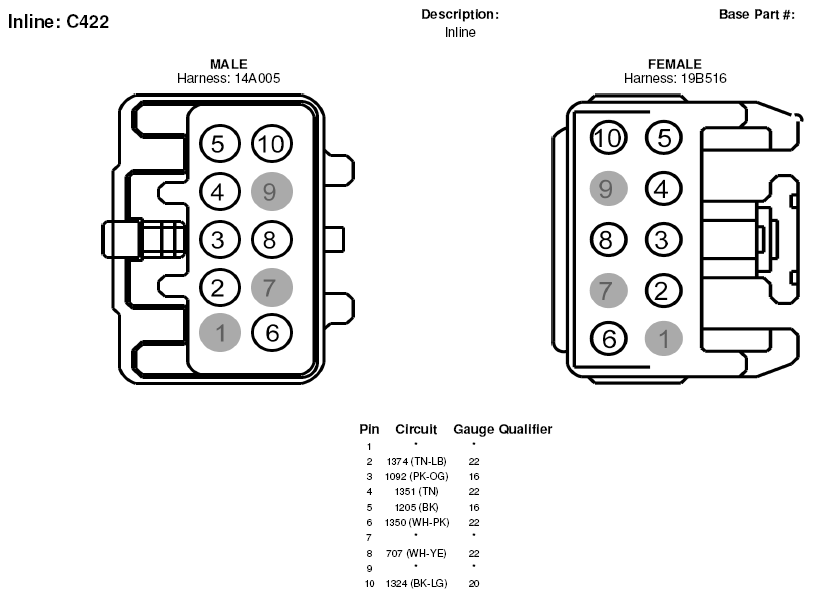

Fig 25: Inline Connector End View (C422)

G05183253

Courtesy of FORD MOTOR CO.

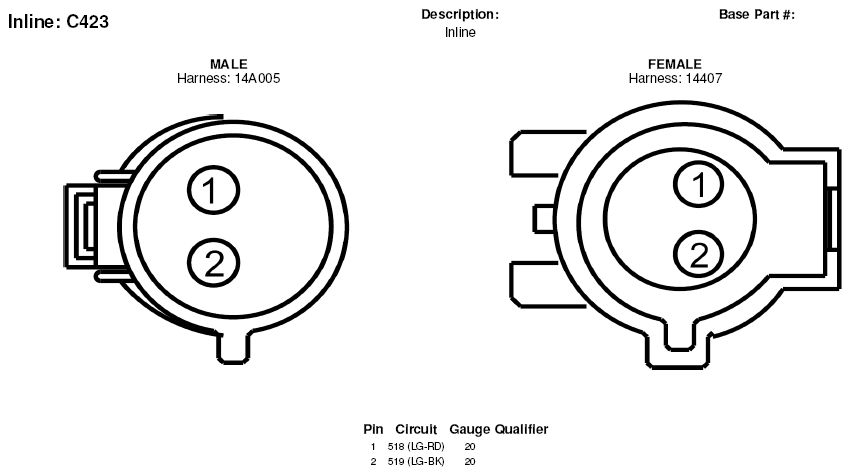

Fig 26: Inline Connector End View (C423)

G05183254

Courtesy of FORD MOTOR CO.

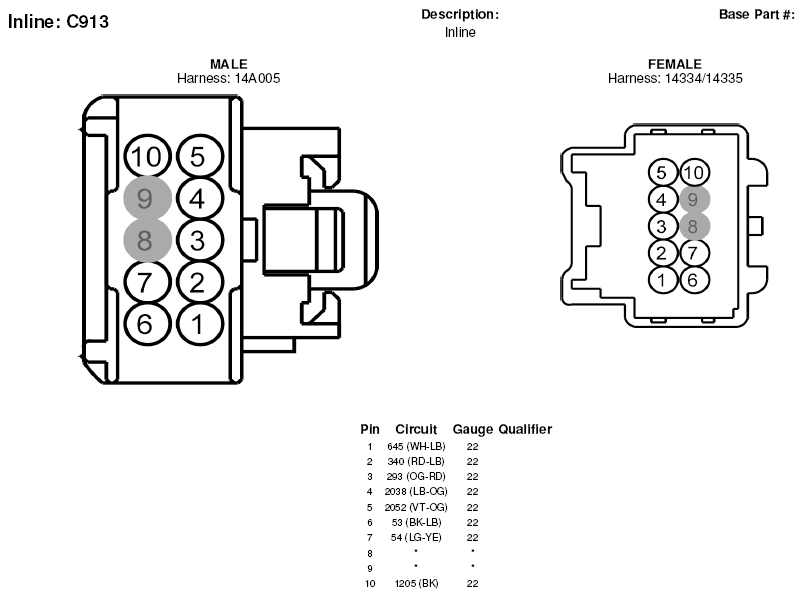

Fig 27: Inline Connector End View (C913)

G05183289

Courtesy of FORD MOTOR CO.

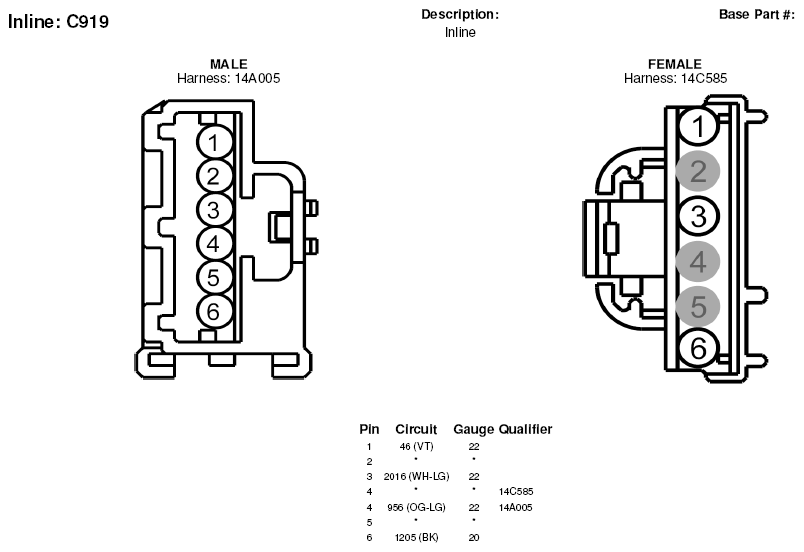

Fig 28: Inline Connector End View (C919)

G05183290

Courtesy of FORD MOTOR CO.
