Intermediate Shaft Speed Sensor Connector

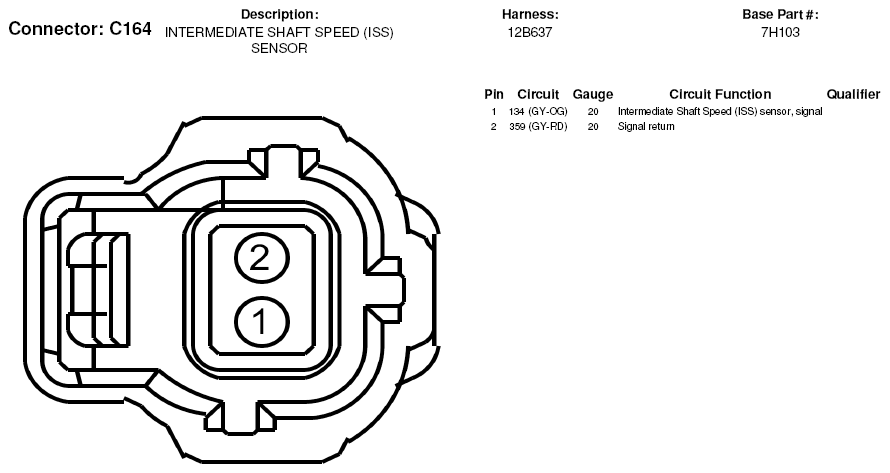

Fig 1: Intermediate Shaft Speed Sensor Connector End View (C164)
G05183175Courtesy of FORD MOTOR CO.
