Occupant Classification Sensor Connector
Occupant Classification Sensor Connector

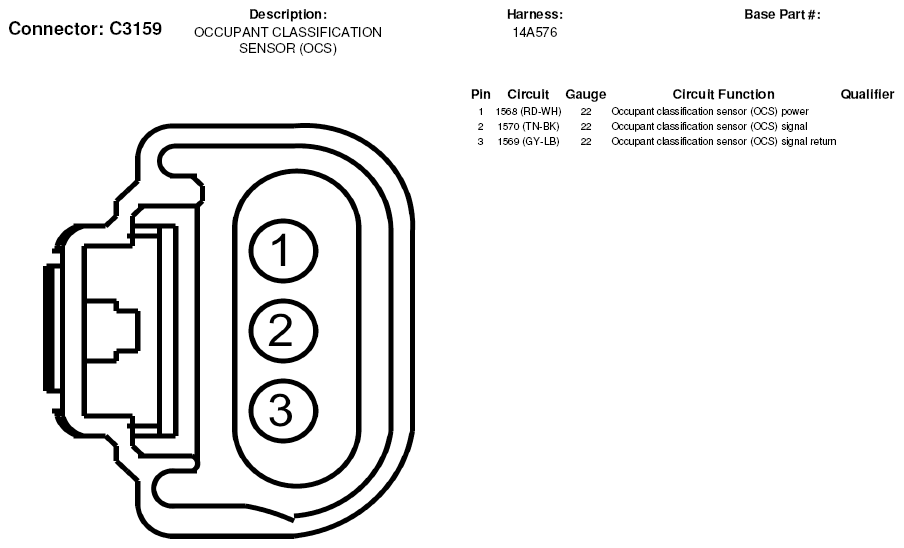

Fig 1: Occupant Classification Sensor Connector End View (C3159)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
