Occupant Classification System Module Connector

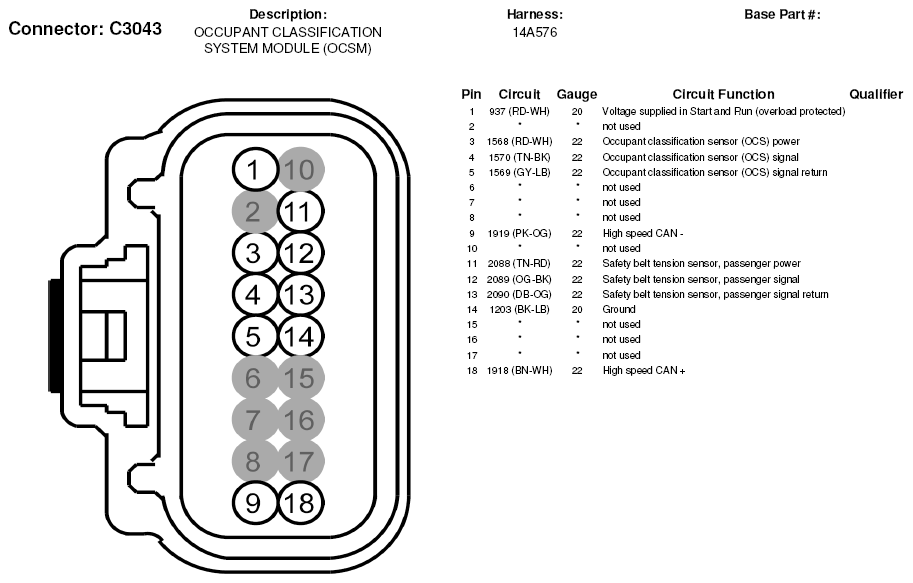

Fig 1: Occupant Classification System Module Connector End View (C3043)
G05183365Courtesy of FORD MOTOR CO.
