Power Steering Pressure Switch Connector
Power Steering Pressure Switch Connector

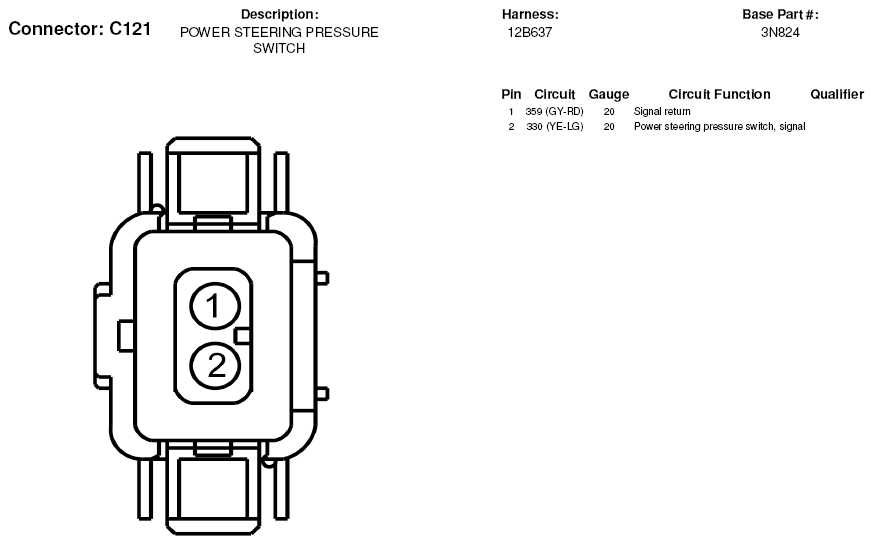

Fig 1: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
