Power Window Motor Connectors

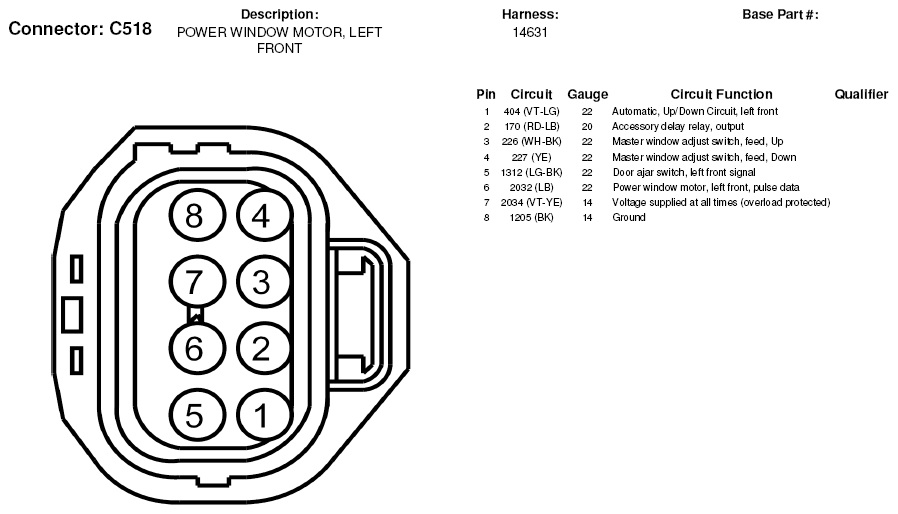

Fig 1: Power Window Motor Connector End View (C518)

Courtesy of FORD MOTOR CO.

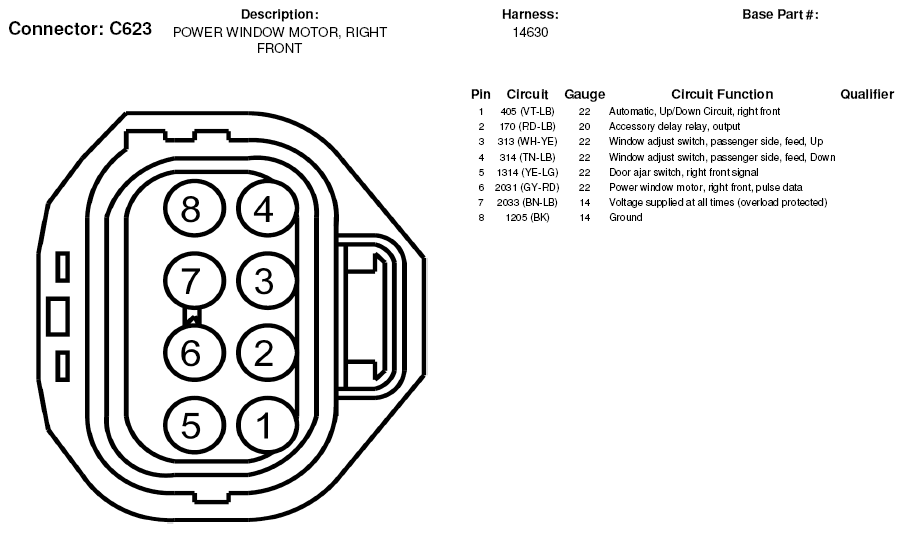

Fig 2: Power Window Motor Connector End View (C623)

Courtesy of FORD MOTOR CO.

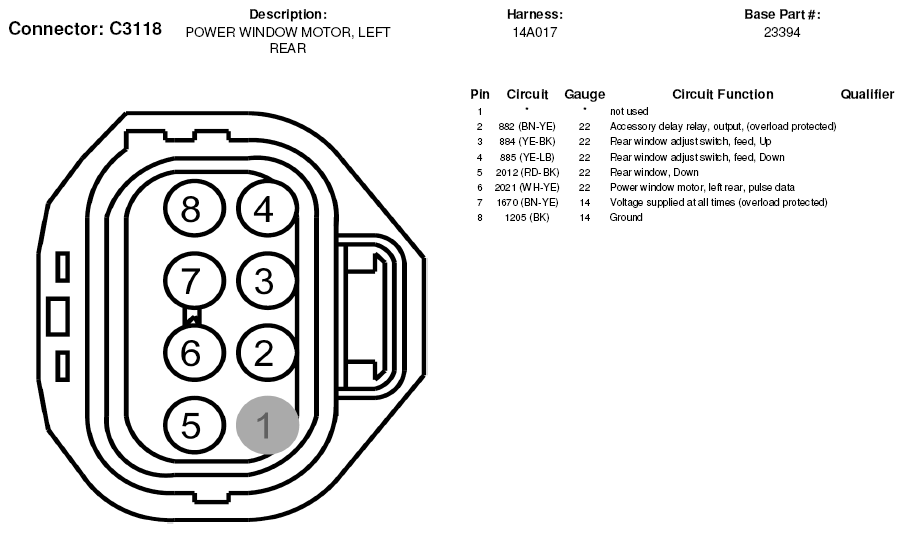

Fig 3: Power Window Motor Connector End View (C3118)

Courtesy of FORD MOTOR CO.

Fig 4: Power Window Motor Connector End View (C3119)

Courtesy of FORD MOTOR CO.
