Powertrain Control Module Connectors

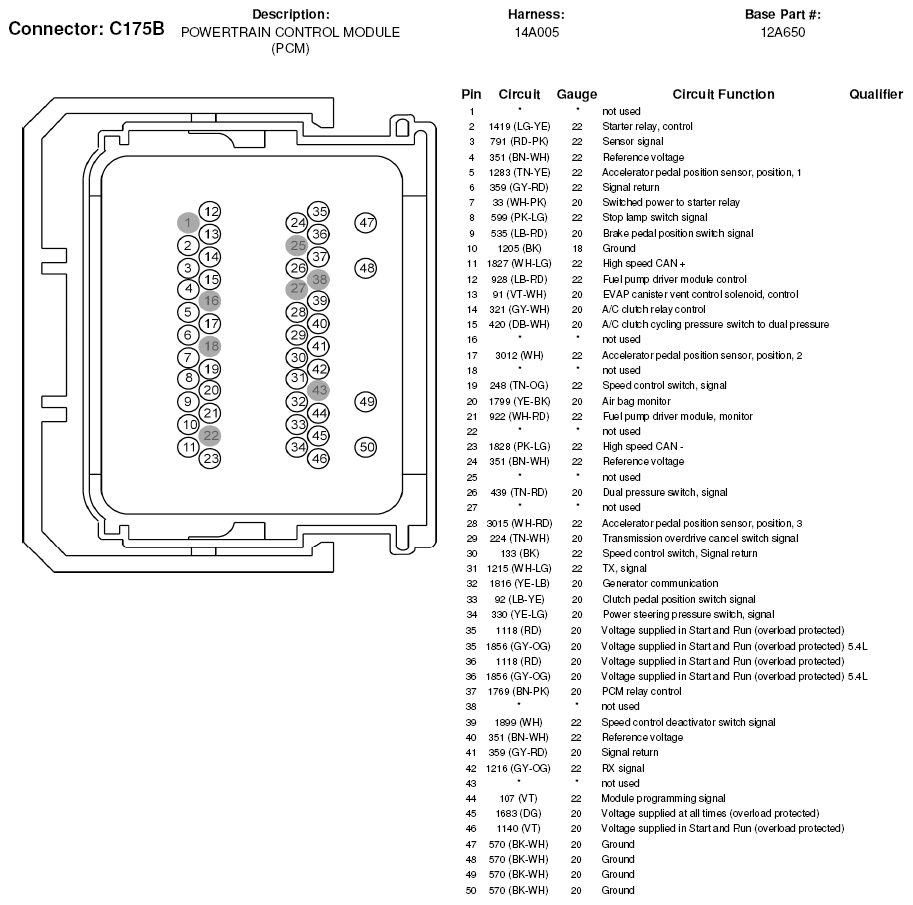

Fig 1: Powertrain Control Module Connector End View (C175B)

Courtesy of FORD MOTOR CO.

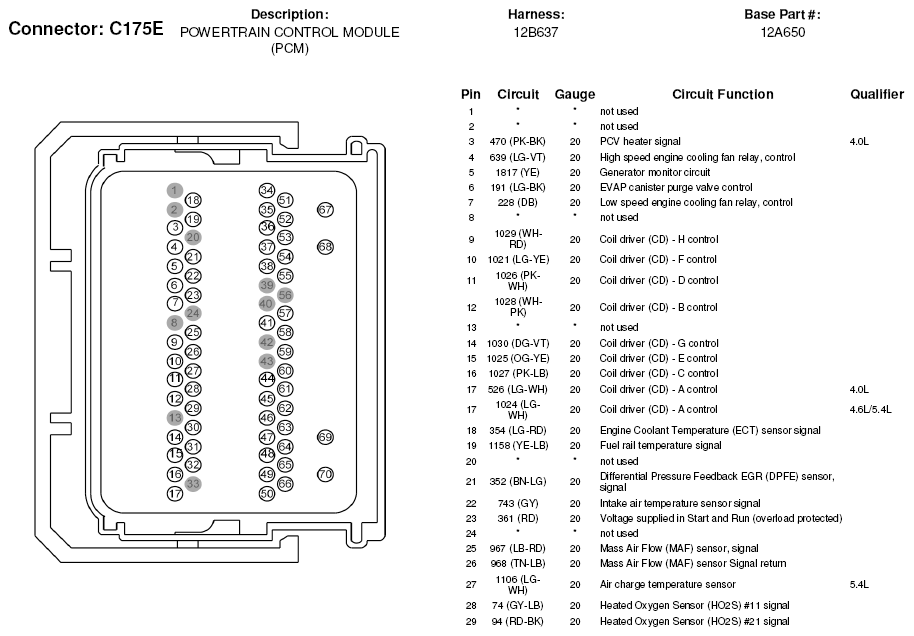

Fig 2: Powertrain Control Module Connector End View (C175E) (1 Of 2)

Courtesy of FORD MOTOR CO.

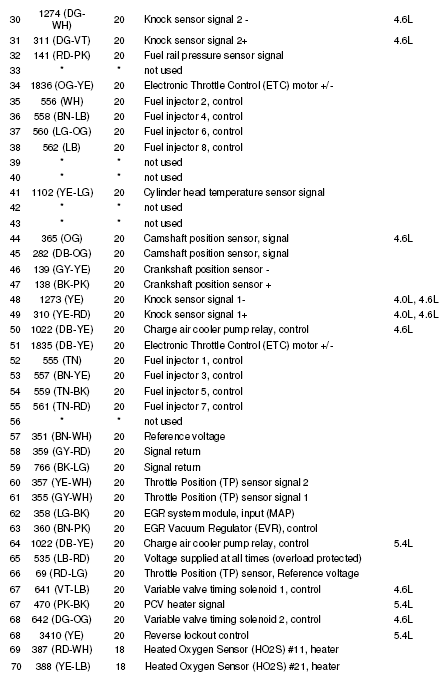

Fig 3: Powertrain Control Module Connector End View (C175E) (2 Of 2)

Courtesy of FORD MOTOR CO.

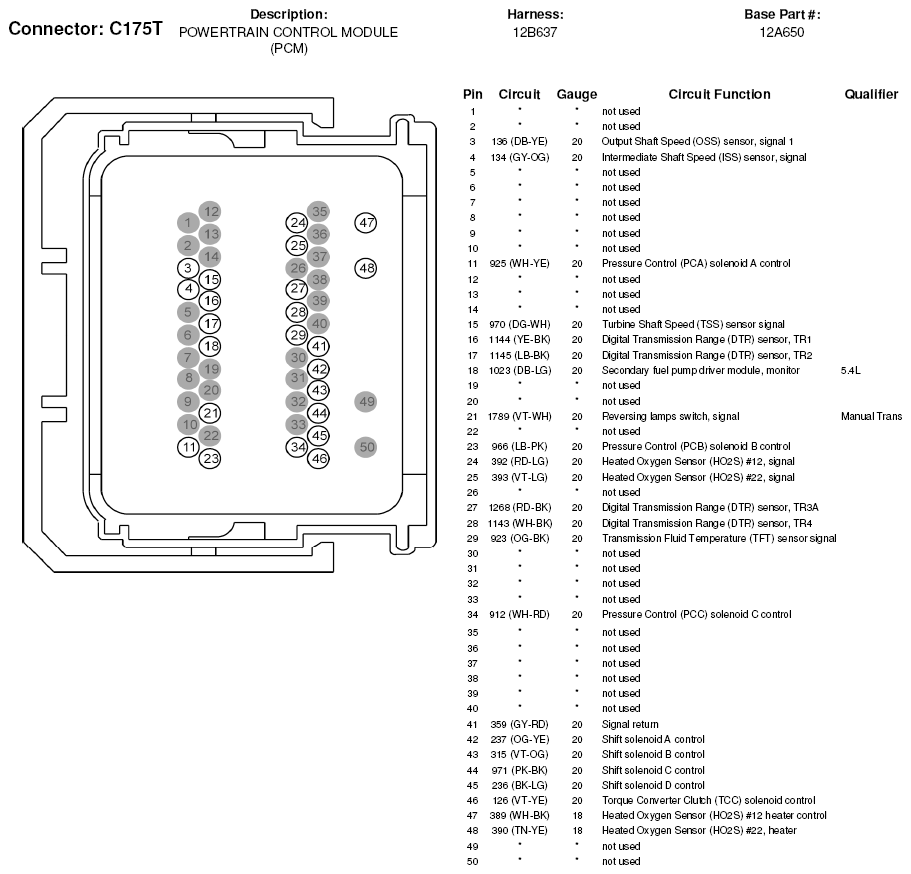

Fig 4: Powertrain Control Module Connector End View (C175T)

Courtesy of FORD MOTOR CO.
