Side Lamp Connector

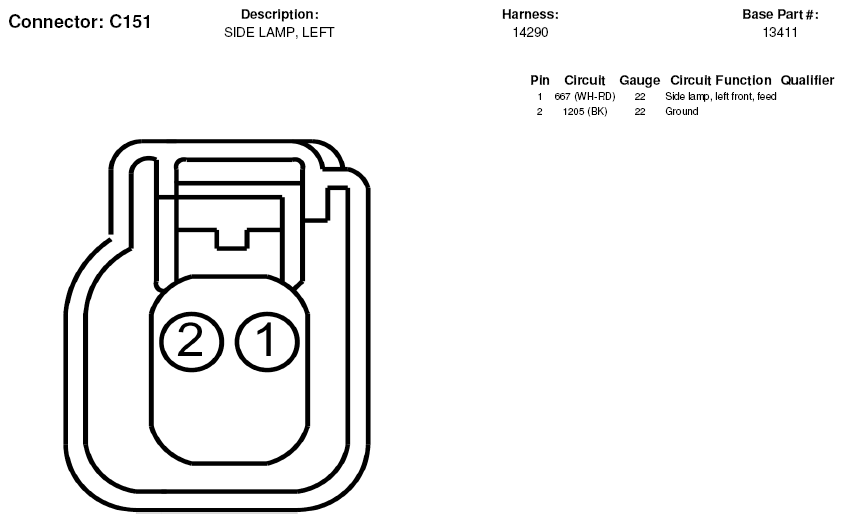

Fig 1: Side Lamp Connector End View (C151)
G05183170Courtesy of FORD MOTOR CO.
Fig 2: Side Lamp Connector End View (C161)
G05183173Courtesy of FORD MOTOR CO.
Fig 3: Side Lamp Connector End View (C481)
G05183264Courtesy of FORD MOTOR CO.
Fig 4: Side Lamp Connector End View (C482)
G05183265Courtesy of FORD MOTOR CO.
