Window Adjust Switch Connectors

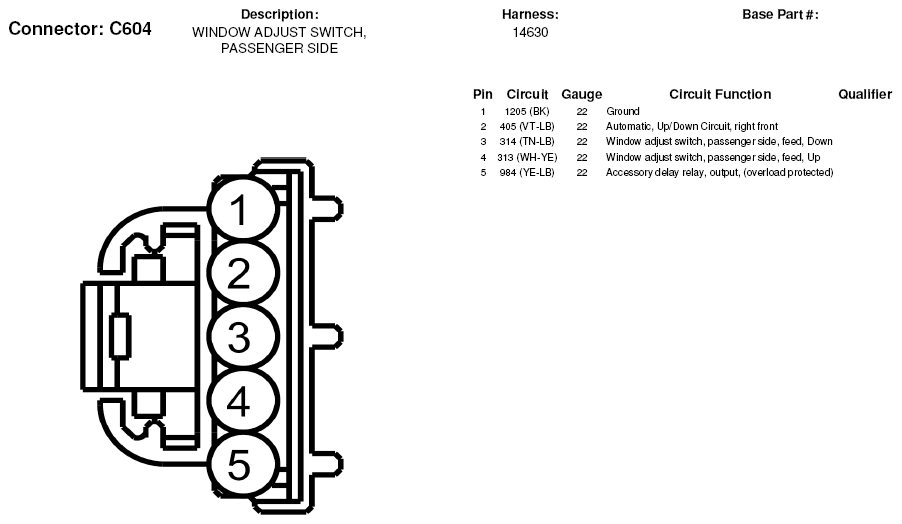

Fig 1: Window Adjust Switch Connector End View (C604)
G05183282Courtesy of FORD MOTOR CO.
