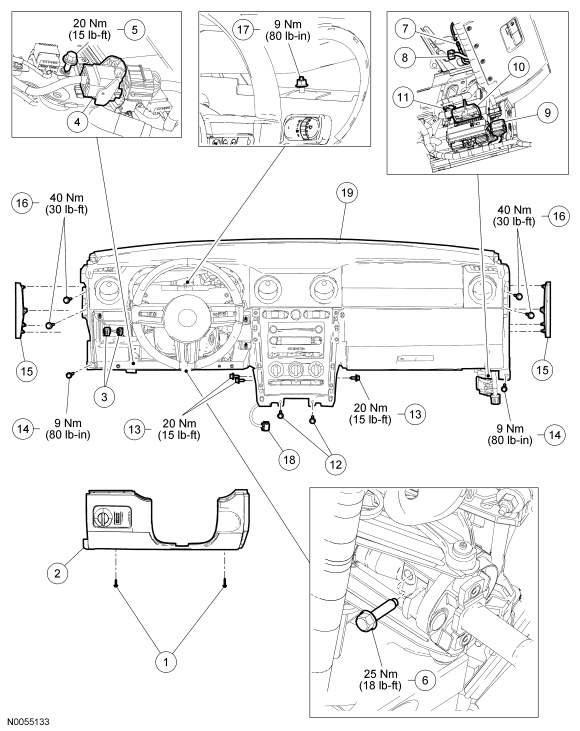

| 1 |
W505156 |
Steering column reinforcement cover screws (2 required) |
| 2 |
6304459 |
Steering column reinforcement cover |
| 3 |
- |
Headlamp switch electrical connectors (2 required) (part of 14401) |
| 4 |
- |
Bulkhead electrical connector (part of 14401) |
| 5 |
W711097 |
Instrument panel support bolt |
| 6 |
W704980 |
Steering column shaft bolt |
| 7 |
19A136 |
Antenna connector |
| 8 |
- |
Defrost mode actuator electrical connector (part of 14401) |
| 9 |
- |
Bulkhead electrical connector (part of 14401) |
| 10 |
- |
Smart junction box (SJB) electrical connector (part of 14401) |
| 11 |
- |
SJB electrical connector (part of 14401) |
| 12 |
W711564 |
Instrument panel center support screws (2 required) |
| 13 |
W711097 |
Instrument panel center support bolts (3 required) |
| 14 |
18C298 |
Instrument panel lower support bolts (2 required) |
| 15 |
6304481/ 6304480 |
Instrument panel end panels (2 required) |
| 16 |
W711097 |
Instrument panel upper support bolts (4 required) |
| 17 |
N811309 |
Instrument panel cowl top bracket nut |
| 18 |
- |
Restraints control module (RCM) small connector (part of 14401) |
| 19 |
6304304 |
Instrument panel |
