Electronic Throttle Control Motor Connector
Electronic Throttle Control Motor Connector

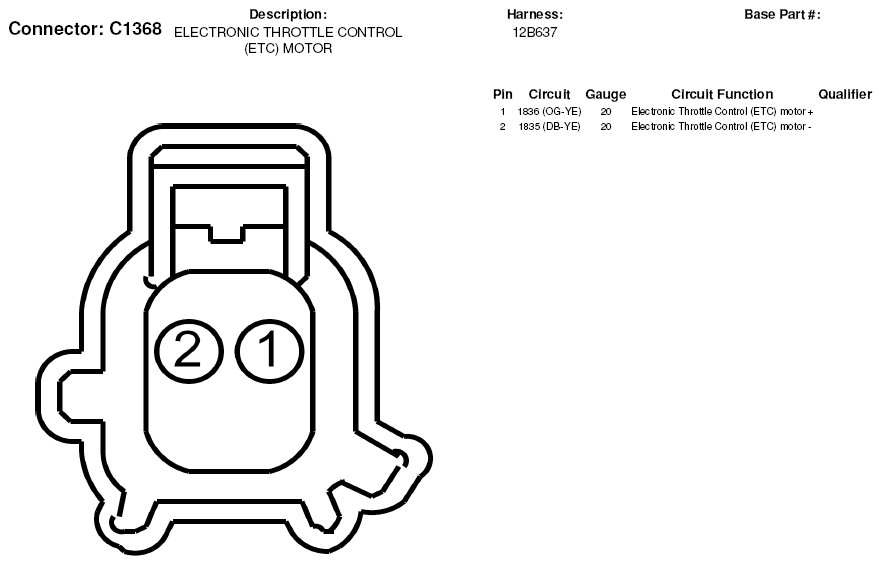

Fig 1: Electronic Throttle Control Motor Connector End View (C1368)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
