Rear Window Adjust Switch Connector

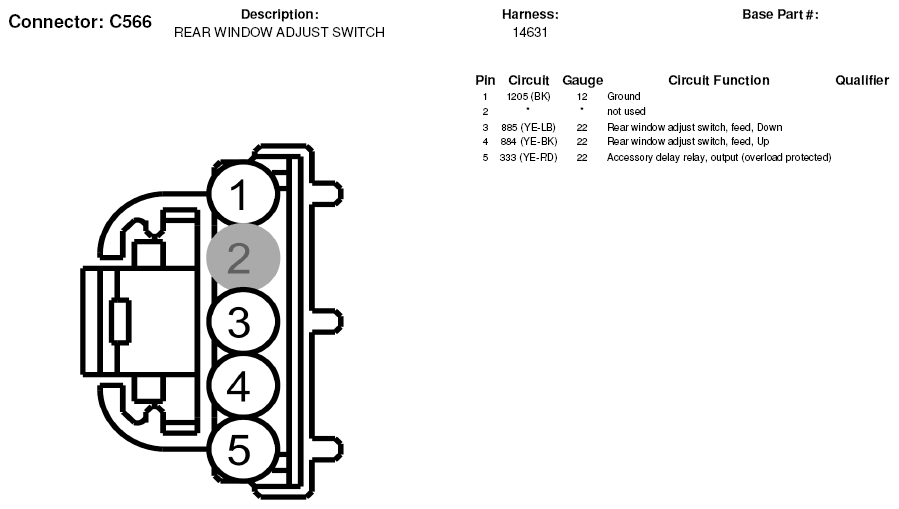

Fig 1: Rear Window Adjust Switch Connector End View (C566)
G05183279Courtesy of FORD MOTOR CO.
