Child Safety Seat Tether Anchor - LATCH
›
Notes
Child Safety Seat Tether Anchor - LATCH: Notes

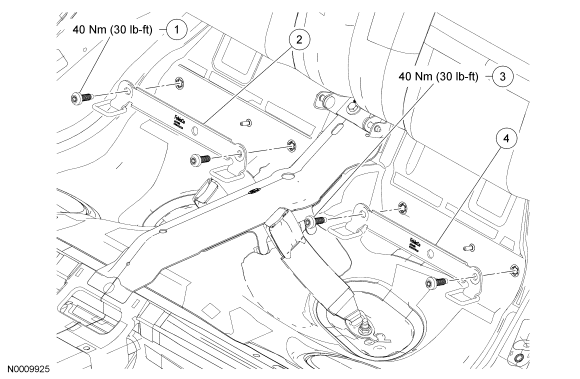

Fig 1: Child Safety Seat Tether Anchor - Latch With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W700833- S437MXD
Lower Anchors and Tethers for Children (LATCH) bolt (2 required)
2
601B28
LATCH
3
W700833- S437MXD
LATCH bolt (2 required)
4
601B28
LATCH
